WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器
來源：http://www.qp11688.cn 作者：金洛鑫電子 2022年07月16

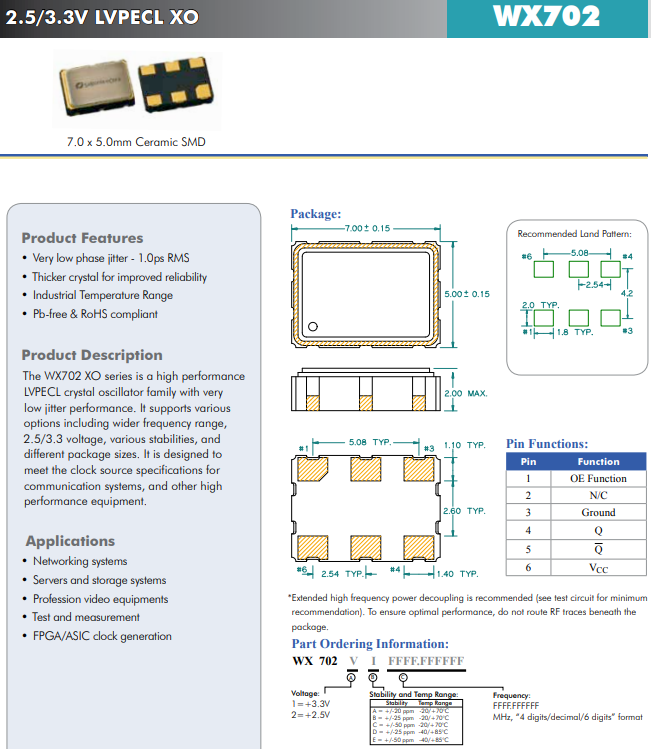

亞陶晶振WX702 XO系列是具有極低抖動性能的高性能LVPECL差分晶體振蕩器系列。它支持各種選項，包括更寬的頻率范圍、小體積晶振尺寸7.0x5.0mm、LVPECL晶體振蕩器，2.5/3.3 電壓、各種穩定性和不同的封裝尺寸。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
.png)
.png)
特征：
非常低的相位抖動-1.0ps RMS
更厚的晶體以提高可靠性石英晶振
工業溫度范圍
無鉛且符合RoHS標準
應用于：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC 時鐘生成
WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器,WX7021A0050.000000,ECERA有源晶振
WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器,WX7021A0050.000000,ECERA有源晶振
| FNC700004 | Diodes Incorporated | SaRonix-eCera™ FN | 127MHz | ±50ppm |
| FND300015 | Diodes Incorporated | SaRonix-eCera™ FN | 133MHz | ±25ppm |
| FND300017 | Diodes Incorporated | SaRonix-eCera™ FN | 133MHz | ±50ppm |
| FND300020 | Diodes Incorporated | SaRonix-eCera™ FN | 133MHz | ±50ppm |
| FND330007 | Diodes Incorporated | SaRonix-eCera™ FN | 133.333MHz | ±50ppm |
| PBF000008 | Diodes Incorporated | SaRonix-eCera™ PB | 150MHz | ±50ppm |
| PBF550004 | Diodes Incorporated | SaRonix-eCera™ PB | 155.52MHz | ±50ppm |
| PBF930003 | Diodes Incorporated | SaRonix-eCera™ PB | 159.375MHz | ±50ppm |
| PBG110003 | Diodes Incorporated | SaRonix-eCera™ PB | 161.133MHz | ±50ppm |
| PD5000002 | Diodes Incorporated | SaRonix-eCera™ PD | 50MHz | ±50ppm |
| PD5000004 | Diodes Incorporated | SaRonix-eCera™ PD | 50MHz | ±50ppm |
| PD6250003 | Diodes Incorporated | SaRonix-eCera™ PD | 62.5MHz | ±50ppm |
| PD7500001 | Diodes Incorporated | SaRonix-eCera™ PD | 75MHz | ±50ppm |
| PD7770001 | Diodes Incorporated | SaRonix-eCera™ PD | 77.76MHz | ±50ppm |
| PDA620003 | Diodes Incorporated | SaRonix-eCera™ PD | 106.25MHz | ±50ppm |
| PDC500003 | Diodes Incorporated | SaRonix-eCera™ PD | 125MHz | ±50ppm |
| PDF000003 | Diodes Incorporated | SaRonix-eCera™ PD | 150MHz | ±50ppm |
| PDF550003 | Diodes Incorporated | SaRonix-eCera™ PD | 155.52MHz | ±50ppm |
| PDF620003 | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm |
| PDF930002 | Diodes Incorporated | SaRonix-eCera™ PD | 159.375MHz | ±50ppm |
| PDG110003 | Diodes Incorporated | SaRonix-eCera™ PD | 161.133MHz | ±50ppm |
| PXA620006 | Diodes Incorporated | SaRonix-eCera™ PX | 106.25MHz | ±50ppm |
| PXA620008 | Diodes Incorporated | SaRonix-eCera™ PX | 106.25MHz | ±50ppm |
| PXF000010 | Diodes Incorporated | SaRonix-eCera™ PX | 150MHz | ±50ppm |
| PXF000011 | Diodes Incorporated | SaRonix-eCera™ PX | 150MHz | ±50ppm |
| PXF620009 | Diodes Incorporated | SaRonix-eCera™ PX | 156.25MHz | ±50ppm |
| PXF620014 | Diodes Incorporated | SaRonix-eCera™ PX | 156.25MHz | ±50ppm |
| SPA000001 | Diodes Incorporated | SaRonix-eCera™ SP | 100MHz | ±50ppm |
| SPA000002 | Diodes Incorporated | SaRonix-eCera™ SP | 100MHz | ±50ppm |
| SQA000002 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| NX5021E0312.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 312.5MHz | ±50ppm |
| PBF550007 | Diodes Incorporated | SaRonix-eCera™ PB | 155.52MHz | ±50ppm |
| PBF620012 | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| PBF930001 | Diodes Incorporated | SaRonix-eCera™ PB | 159.375MHz | ±50ppm |
| PBG110005 | Diodes Incorporated | SaRonix-eCera™ PB | 161.133MHz | ±50ppm |
| PD5000001 | Diodes Incorporated | SaRonix-eCera™ PD | 50MHz | ±50ppm |
| PD6250002 | Diodes Incorporated | SaRonix-eCera™ PD | 62.5MHz | ±50ppm |
| PD7500002 | Diodes Incorporated | SaRonix-eCera™ PD | 75MHz | ±50ppm |
| PD7770002 | Diodes Incorporated | SaRonix-eCera™ PD | 77.76MHz | ±50ppm |
| PDA000001 | Diodes Incorporated | SaRonix-eCera™ PD | 100MHz | ±50ppm |
| PDA620001 | Diodes Incorporated | SaRonix-eCera™ PD | 106.25MHz | ±50ppm |
| PDC500001 | Diodes Incorporated | SaRonix-eCera™ PD | 125MHz | ±50ppm |
| PDF000002 | Diodes Incorporated | SaRonix-eCera™ PD | 150MHz | ±50ppm |
| PDF550001 | Diodes Incorporated | SaRonix-eCera™ PD | 155.52MHz | ±50ppm |
| PDF930001 | Diodes Incorporated | SaRonix-eCera™ PD | 159.375MHz | ±50ppm |
| PDG110001 | Diodes Incorporated | SaRonix-eCera™ PD | 161.133MHz | ±50ppm |
| PXA000012 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm |
| PXA620004 | Diodes Incorporated | SaRonix-eCera™ PX | 106.25MHz | ±50ppm |
| PXA620005 | Diodes Incorporated | SaRonix-eCera™ PX | 106.25MHz | ±50ppm |
| PXC500011 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm |
Product Parameters
| Subfamily | General XO |
|---|---|
| Product Series | WX7 |
| Compliance(Only Automotive supports PPAP) | Standard |
| Freq Range (MHz) | 50 to 212.5 |
| Jitter RMS (ps) | <1 |
| Stability (PPM) | 20 to 50 |
| Package Size (mm) | 7.0 x 5.0 |
| PkgType | Ceramic Seam |
| Output Logic | PECL |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器,WX7021A0050.000000,ECERA有源晶振
產品參數：
產品參數：
類別 XO將軍
產品系列 WX7晶體振蕩器
合規性（僅汽車支持 PPAP） 標準
頻率范圍 (MHz) 50 至 212.5
抖動均方根 (ps) <1
穩定性 20到50PPM
包裝尺寸 7.0 x 5.0mm
包裝類型 陶瓷縫
輸出邏輯 PECL
電源電壓 3.3V, 2.5V
墊 6腳
WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器,WX7021A0050.000000,ECERA有源晶振
WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器,WX7021A0050.000000,ECERA有源晶振
| PXF620011 | Diodes Incorporated | SaRonix-eCera™ PX | 156.25MHz | ±50ppm |
| PXF620012 | Diodes Incorporated | SaRonix-eCera™ PX | 156.25MHz | ±50ppm |
| SNI750005 | Diodes Incorporated | SaRonix-eCera™ SN | 187.5MHz | ±50ppm |
| SNK000006 | Diodes Incorporated | SaRonix-eCera™ SN | 200MHz | ±50ppm |
| SNL250004 | Diodes Incorporated | SaRonix-eCera™ SN | 212.5MHz | ±50ppm |
| PD6250001 | Diodes Incorporated | SaRonix-eCera™ PD | 62.5MHz | ±25ppm |
| PDA000003 | Diodes Incorporated | SaRonix-eCera™ PD | 100MHz | ±25ppm |
| PDA620002 | Diodes Incorporated | SaRonix-eCera™ PD | 106.25MHz | ±25ppm |
| PDC500002 | Diodes Incorporated | SaRonix-eCera™ PD | 125MHz | ±25ppm |
| PXA000011 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±25ppm |
| PXC500008 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±25ppm |
| PXC500009 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±25ppm |
| PXF550003 | Diodes Incorporated | SaRonix-eCera™ PX | 155.52MHz | ±25ppm |
| PXF620010 | Diodes Incorporated | SaRonix-eCera™ PX | 156.25MHz | ±25ppm |
| SQF620001 | Diodes Incorporated | SaRonix-eCera™ SQ | 156.25MHz | ±25ppm |
| PBF550006 | Diodes Incorporated | SaRonix-eCera™ PB | 155.52MHz | ±20ppm |
| PBF620010 | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±20ppm |
| PBG110004 | Diodes Incorporated | SaRonix-eCera™ PB | 161.133MHz | ±20ppm |
| PDF550002 | Diodes Incorporated | SaRonix-eCera™ PD | 155.52MHz | ±20ppm |
| PDF620002 | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±20ppm |
| PDG110002 | Diodes Incorporated | SaRonix-eCera™ PD | 161.133MHz | ±20ppm |
| PXA000009 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±20ppm |
| JX5021E0312.500000 | Diodes Incorporated | SaRonix-eCera™ JX | 312MHz | ±50ppm |
| FN9830010 | Diodes Incorporated | SaRonix-eCera™ FN | 98.304MHz | ±50ppm |
| FNA000074 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm |
| WX501 | 標準 | CMOS | 3.32.5 | 20~50 | 50 至 212.5 | <1 | 4 | - | 2.5V/3.3V、5.0x3.2mm、PLL CMOS 晶體振蕩器 | |
|---|---|---|---|---|---|---|---|---|---|---|
| WX502 | 標準 | PECL | 3.32.5 | 20~50 | 50 至 212.5 | <1 | 6 | - | 2.5V/3.3V、5.0x3.2mm、PLL LV-PECL差分晶振 | |
| WX503 | 標準 | LVDS | 3.32.5 | 20~50 | 50 至 212.5 | <1 | 6 | - | 2.5V/3.3V、5.0x3.2mm、PLL LVDS 晶體振蕩器 | |
| WX701 | 標準 | CMOS | 3.32.5 | 20~50 | 50 至 212.5 | <1 | 4 | - | 2.5V/3.3V, 7.0x5.0mm, PLL CMOS 晶體振蕩器 | |
| WX702 | 標準 | PECL | 3.32.5 | 20~50 | 50 至 212.5 | <1 | 6 | - | 2.5V/3.3V、7.0x5.0mm、PLL LVPECL 晶體振蕩器 |
| FNB000003 | Diodes Incorporated | SaRonix-eCera™ FN | 110MHz | ±50ppm |
| FNC000011 | Diodes Incorporated | SaRonix-eCera™ FN | 120MHz | ±50ppm |
| FNC500123 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±25ppm |
| FNC500124 | Diodes Incorporated | SaRonix-eCera™ FN | 125.009MHz | ±25ppm |
| FNC500127 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±20ppm |
| FNC500134 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| FNC500135 | Diodes Incorporated | SaRonix-eCera™ FN | 125.004MHz | ±50ppm |
| SNI750006 | Diodes Incorporated | SaRonix-eCera™ SN | 187.5MHz | ±50ppm |
| SNK000007 | Diodes Incorporated | SaRonix-eCera™ SN | 200MHz | ±50ppm |
| SNL250005 | Diodes Incorporated | SaRonix-eCera™ SN | 212.5MHz | ±50ppm |
| LDA000002 | Diodes Incorporated | SaRonix-eCera™ LD | 100MHz | ±50ppm |
| LDA620002 | Diodes Incorporated | SaRonix-eCera™ LD | 106.25MHz | ±50ppm |
| LDA620003 | Diodes Incorporated | SaRonix-eCera™ LD | 106.25MHz | ±50ppm |
| LDF000001 | Diodes Incorporated | SaRonix-eCera™ LD | 150MHz | ±50ppm |
| LDF000002 | Diodes Incorporated | SaRonix-eCera™ LD | 150MHz | ±50ppm |
| LDF620004 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±50ppm |
| LDF620006 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±50ppm |
| PB5000005 | Diodes Incorporated | SaRonix-eCera™ PB | 50MHz | ±50ppm |
| PB5000007 | Diodes Incorporated | SaRonix-eCera™ PB | 50MHz | ±50ppm |
| PB6250004 | Diodes Incorporated | SaRonix-eCera™ PB | 62.5MHz | ±50ppm |
| PB7500004 | Diodes Incorporated | SaRonix-eCera™ PB | 75MHz | ±50ppm |
| PB7770004 | Diodes Incorporated | SaRonix-eCera™ PB | 77.76MHz | ±50ppm |
| PBA000007 | Diodes Incorporated | SaRonix-eCera™ PB | 100MHz | ±50ppm |
| PBA620006 | Diodes Incorporated | SaRonix-eCera™ PB | 106.25MHz | ±50ppm |
| PBC500006 | Diodes Incorporated | SaRonix-eCera™ PB | 125MHz | ±50ppm |
我們提供一流的晶體 (Xtal) 和石英晶體振蕩器 (XO)，針對您的設計要求進行了優化。
我們廣泛的晶體和晶體振蕩器提供：
輸出頻率范圍從 kHz到GHz
完整的輸出組合： CMOS、CML、LVPECL、LVDS、削波正弦波和 HCSL
完整的XO產品組合，包括標準 XO、VCXO、TCXO 到超低抖動和高溫 XO
從 1.0V 到 3.3V 的多個電壓范圍（甚至是傳統的 5V）
大量 SMT 封裝選項組合，可滿足您的封裝要求
