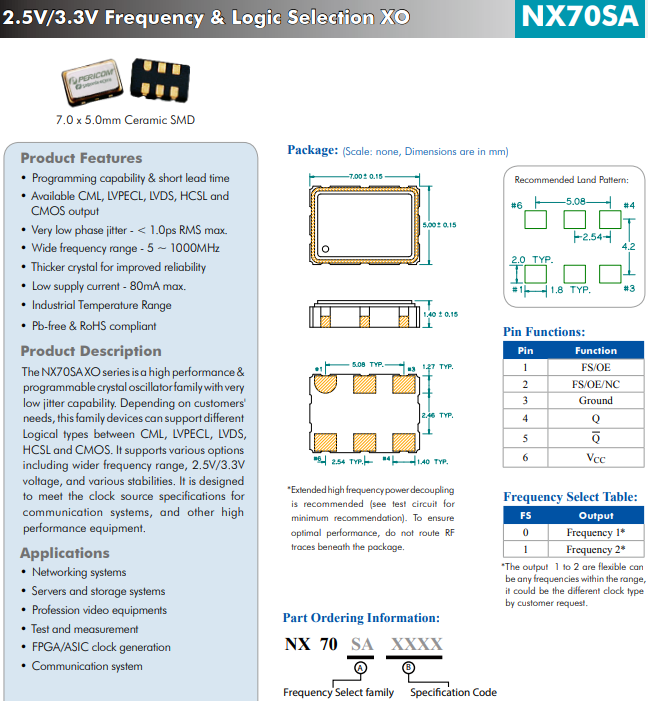

亞陶貼片晶振NX70SA XO系列是具有極低抖動能力的高性能可編程晶體振蕩器系列。小體積晶振尺寸7.0mmx5.0mm，雙頻邏輯可編程XO，根據客戶的需求，該系列器件可以支持CML、LVPECL、LVDS、HCSL和CMOS之間的不同邏輯類型。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。

產品特點：

編程能力和交貨時間短

可用的CML、LVPECL、LVDS、HCSL和CMOS輸出差分晶體振蕩器

非常低的相位抖動 - < 1.0ps RMS最大值。

寬頻率范圍 - 5~1000MHz

更厚的晶體以提高可靠性

低電源電流-最大80mA。

工業溫度范圍

無鉛且符合RoHS標準

應用：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC 時鐘生成，通訊系統
NX70SA系列具有極低抖動能力的高性能可編程晶體振蕩器,NX7021E0125.000000,可編程晶振,差分晶體振蕩器
