DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,石英晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

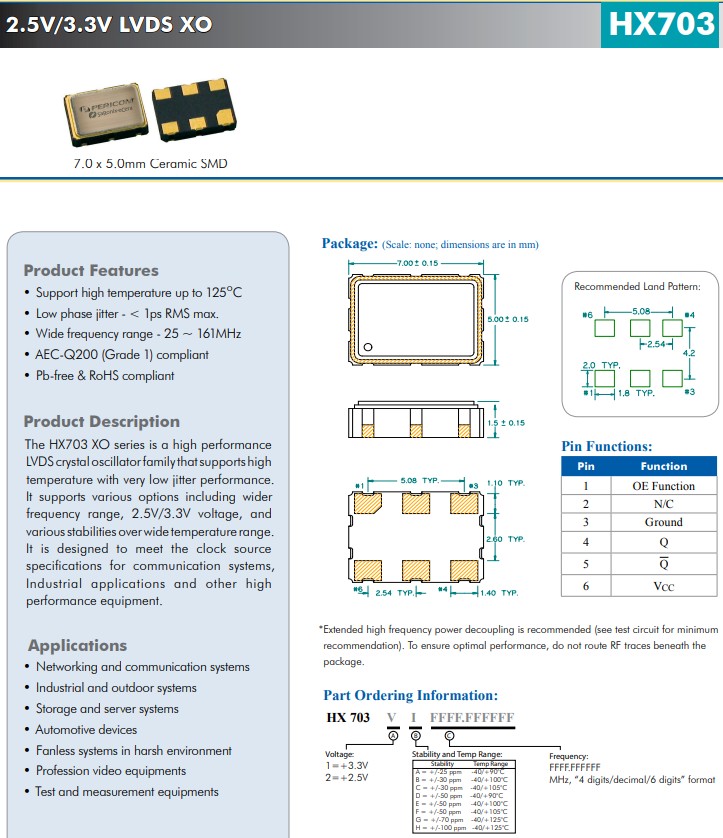

HX703 XO系列是高性能LVDS差分晶振系列，支持高溫且抖動性能極低。它支持各種選項，包括更寬的頻率范圍、2.5V/3.3V電壓以及在寬溫度范圍內的各種穩定性。它旨在滿足通信系統、工業應用和其他高性能設備的時鐘源規范。
.JPG)
HX703 XO系列是高性能LVDS差分晶振系列，支持高溫且抖動性能極低。它支持各種選項，包括更寬的頻率范圍、2.5V/3.3V電壓以及在寬溫度范圍內的各種穩定性。它旨在滿足通信系統、工業應用和其他高性能設備的時鐘源規范。
產品特點：
支持高達125°C的高溫
低相位抖動 - < 1ps RMS最大值。
寬頻率范圍 - 25 ~ 161MHz
符合 AEC-Q200（1 級）標準
無鉛且符合 RoHS 標準
應用于：網絡和通信系統，工業和戶外系統，存儲和服務器系統，汽車設備，惡劣環境下的無風扇系統，專業視頻設備，測試和測量設備
HX703系列滿足通信系統和其他高性能設備的時鐘源規范,HX7011C0050.000000,LVDS晶振,ECERA晶振
HX703系列滿足通信系統和其他高性能設備的時鐘源規范,HX7011C0050.000000,LVDS晶振,ECERA晶振
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm |
| NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KX2513G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm |
| YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm |
| YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm |
| KX3211D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| FRSTB1027 | Diodes Incorporated | SaRonix-eCera™ FR | 27MHz | ±25ppm |
| FRTELE016 | Diodes Incorporated | SaRonix-eCera™ FR | 16.384MHz | ±25ppm |
| FRETHE025 | Diodes Incorporated | SaRonix-eCera™ FR | 25MHz | ±25ppm |
| KX2013B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2013D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
HX703系列滿足通信系統和其他高性能設備的時鐘源規范,HX7011C0050.000000,LVDS晶振,ECERA晶振
產品參數：
產品參數：
系列 高溫XO
產品系列 HX
合規性（僅汽車支持 PPAP） 標準
頻率范圍 (MHz) 25 至 162 (1.8V/2.5V/3.3V)
抖動均方根 (ps) <1
穩定性 (PPM) 25 到 100
包裝尺寸 7.0x5.0x1.4mm有源晶振
包裝類型 陶瓷縫
輸出邏輯 LVDS
電源電壓 (V) 3.3, 2.5
墊 6腳
7050mm體積非常小的SMD晶振器件,是民用小型無線數碼產品的最佳選擇,小體積晶振被廣泛應用到,手機藍牙,GPS定位系統,無線通訊集,高精度和高頻率的穩定性能,非常好的減少電磁干擾的影響,是民用無線數碼產品最好的選擇,符合RoHS/無鉛. HX703系列滿足通信系統和其他高性能設備的時鐘源規范,HX7011C0050.000000,LVDS晶振,ECERA晶振
| KX2511A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KX2513D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm |
| JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm |
| JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm |
| KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270052 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270052 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270052 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| JX7011B0044.736000 | Diodes Incorporated | SaRonix-eCera™ JX | 44.736MHz | ±25ppm |
| JX7011B0044.736000 | Diodes Incorporated | SaRonix-eCera™ JX | 44.736MHz | ±25ppm |
| JX7011B0044.736000 | Diodes Incorporated | SaRonix-eCera™ JX | 44.736MHz | ±25ppm |
| KK3270051 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270051 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270051 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| JX5011C0120.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 120MHz | ±50ppm |
| JX5011C0120.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 120MHz | ±50ppm |
| JX5011C0120.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 120MHz | ±50ppm |
| KX2132709Z | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2132709Z | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2132709Z | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| JX7012D0025.001875 | Diodes Incorporated | SaRonix-eCera™ JX | 25.001875MHz | ±25ppm |
| JX7012D0025.001875 | Diodes Incorporated | SaRonix-eCera™ JX | 25.001875MHz | ±25ppm |
| JX7012D0025.001875 | Diodes Incorporated | SaRonix-eCera™ JX | 25.001875MHz | ±25ppm |
| JX7011E0091.500000 | Diodes Incorporated | SaRonix-eCera™ JX | 91.5MHz | ±50ppm |
| JX7011E0091.500000 | Diodes Incorporated | SaRonix-eCera™ JX | 91.5MHz | ±50ppm |
| JX7011E0091.500000 | Diodes Incorporated | SaRonix-eCera™ JX | 91.5MHz | ±50ppm |
| KJ3270004Z | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±50ppm |
| KJ3270004Z | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±50ppm |
| KJ3270004Z | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±50ppm |
| PD10GE159 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 159.375MHz | ±50ppm |
| PD10GE159 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 159.375MHz | ±50ppm |
| PD10GE159 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 159.375MHz | ±50ppm |
| PDGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| PDGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| PDGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| JX7011D0104.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 104MHz | ±25ppm |
| JX7011D0104.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 104MHz | ±25ppm |
| JX7011D0104.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 104MHz | ±25ppm |
| JT255BI0032.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 32MHz | ±2ppm |
| JT255BI0032.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 32MHz | ±2ppm |
| JT255BI0032.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 32MHz | ±2ppm |
| LDA000004 | Diodes Incorporated | SaRonix-eCera™ LD | 100MHz | ±50ppm |
| FN2500246 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |
| FN2500246 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |
| FN2500246 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |
HX703系列滿足通信系統和其他高性能設備的時鐘源規范,HX7011C0050.000000,LVDS晶振,ECERA晶振
我們的晶體振蕩器 (CXO) 提供高價值、卓越的性能和功能以及卓越的品質和服務。我們為批量生產提供快速周轉樣品、響應式技術支持和快速交貨時間。
我們的晶體振蕩器 (CXO) 提供高價值、卓越的性能和功能以及卓越的品質和服務。我們為批量生產提供快速周轉樣品、響應式技術支持和快速交貨時間。
提供多種類型和特性：
1) 尺寸從 7x5mm 到 2.0x1.6mm，
2) 傳統 CXO 的溫度穩定性為 ±5PPM，
3) CMOS/TTL、LVPECL、LVDS、HCSL 的輸出邏輯格式，和慢性粒細胞白血病。
我們的 CXO 被領先制造商用于各種要求苛刻的應用，從消費類到工業、汽車 (AEC-Q200/AEC-Q104)、網絡、存儲、計算、電信等。
