FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z
來源：http://www.qp11688.cn 作者：金洛鑫電子 2022年07月06

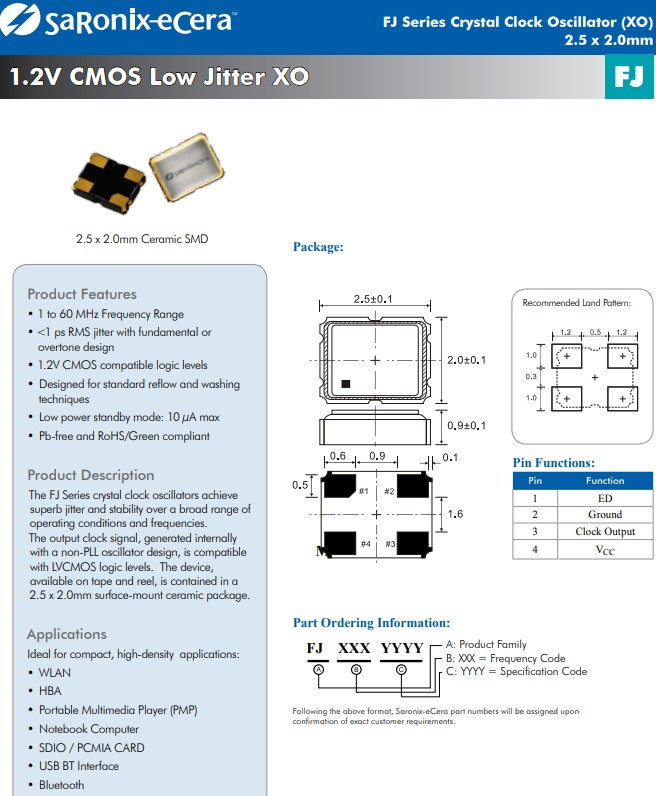

亞陶晶振FJ系列1.2V時鐘晶體振蕩器可在廣泛的工作條件和頻率范圍內實現出色的抖動和穩定性，F(xiàn)J系列小體積尺寸2.5x2.0mm、CMOS晶體振蕩器，使用非PLL振蕩器設計在內部生成的輸出時鐘信號與LVCMOS邏輯電平兼容。該器件采用卷帶包裝，采用 2.5x2.0mm表面貼裝陶瓷封裝。
特征：
頻率范圍：1至60MHz晶體振蕩器
<1 ps RMS 抖動，采用基頻或泛音設計
1.2V CMOS兼容邏輯電平
專為標準回流和清洗技術而設計
低功耗待機模式：最大10μA
無鉛且符合 RoHS/Green標準
應用：緊湊、高密度應用的理想選擇：無線局域網，HBA，便攜式多媒體播放器 (PMP)，筆記本電腦 SDIO / PCMIA CARD USB BT 接口，藍牙
FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z,FJ2500036Z,時鐘振蕩器,2520mm晶振,ECERA晶振
.JPG)
FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z,FJ2500036Z,時鐘振蕩器,2520mm晶振,ECERA晶振
FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z,FJ2500036Z,時鐘振蕩器,2520mm晶振,ECERA晶振
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| FRBST1061 | Diodes Incorporated | SaRonix-eCera™ FR | 61.44MHz | ±50ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
| JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm |
FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z,FJ2500036Z,時鐘振蕩器,2520mm晶振,ECERA晶振
roduct Specifications
Product Parameters
| Subfamily | General XO |
|---|---|
| Product Series | FJ_4 |
| Compliance(Only Automotive supports PPAP) | Standard |
| Freq Range (MHz) | 1 to 60 |
| Jitter RMS (ps) | <1 |
| Stability (PPM) | 20 to 50 |
| Package Size (mm) | 2.5 x 2.0 |
| PkgType | Ceramic Seam |
| Output Logic | CMOS |
| Supply Voltage (V) | 1.2 |
| Pads | 4 |
| KM3270004 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| FK2500021 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FN4000159 | Diodes Incorporated | SaRonix-eCera™ FN | 40MHz | ±50ppm |
| FK0800003 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm |
| FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm |
| FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm |
| FNSAS2075 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 75MHz | ±50ppm |
| FD6250012 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
| KN3270028 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270032 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KN3270031 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270042 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KN3270022 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270036 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KN3270032 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z,FJ2500036Z,時鐘振蕩器,2520mm晶振,ECERA晶振
產品參數：
產品參數：
系列 XO振蕩器
產品系列 FJ_4
合規性（僅汽車支持PPAP）標準
頻率范圍 1MHz到60MHz
抖動均方根 (ps) <1
穩定性 20PPM到50PPM
包裝尺寸 2.5x2.0mm貼片振蕩器
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 1.2V
墊 4腳
| KN3270033 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| KD3270034 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KX3211B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3211C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3211E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3211G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3213G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3211H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KD3270043 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270026 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KN3270034 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KD3270012 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KK3270040 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270042 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KK3270044 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KN3270027 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KD3270033 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270030 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±20ppm |
| KD3270039 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±20ppm |
| KN3270023 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±50ppm |
| FNC500129 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| KN3270036 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KN3270029 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KX2511B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2511C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2511E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX2511H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2513C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
FJ系列1.2V時鐘晶體振蕩器,FJ1120001Z,FJ2500036Z,時鐘振蕩器,2520mm晶振,ECERA晶振
FJ 1.2V 標準 20~50 2.5x2.0 CMOS 1.2 4 - 1.2V、2.5x2.0mm、CMOS晶體振蕩器
FJ 1.2V 標準 20~50 2.5x2.0 CMOS 1.2 4 - 1.2V、2.5x2.0mm、CMOS晶體振蕩器
FJ 1.8V 標準 20~50 2.5x2.0 CMOS 1.8 4 - 1.8V、2.5x2.0mm、CMOS晶體振蕩器
FJ 2.5V 標準 20~50 2.5x2.0 CMOS 2.5 4 - 2.5V、2.5x2.0mm、CMOS晶體振蕩器
FJ 3.3V 標準 20~50 2.5x2.0 CMOS 3.3 4 - 3.3V、2.5x2.0mm、CMOS晶體振蕩器
