- 規格型號：69403799
- 頻率：32.768 kHz
- 尺寸：2.50mm x 2.00mm
- 產品描述：CSX-252FAP32768T|Citizen晶振|低電壓晶振|CSX-252F貼片晶振,廣泛應用于智能手表(睡眠監測計時),無線傳感器(數據傳輸同步),醫療便攜設備(生命體征采樣)等場景,無需額外電壓調節模塊即可直接接入電路

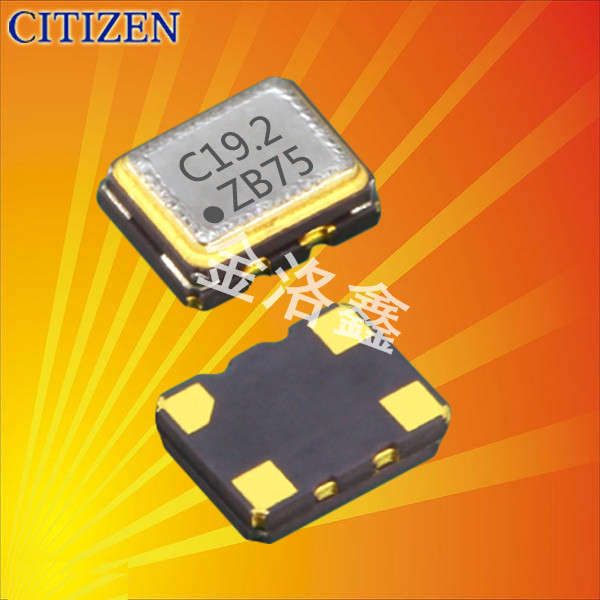

CSX-252FAP32768T|Citizen晶振|低電壓晶振|CSX-252F貼片晶振
.png)
.png)
CSX-252FAP32768T|Citizen晶振|低電壓晶振|CSX-252F貼片晶振
作為CitizenCSX-252F系列的代表性型號,CSX-252FAP32768T以32.768kHz標準頻率為核心,專為低電壓場景設計,支持1.2V~3.6V寬壓供電,完美適配智能手環,藍牙耳機,便攜血糖儀等低功耗晶振設備.其采用高精度貼片式封裝,體積僅為傳統插件晶振的1/3,可輕松融入高密度PCB布局;依托Citizen先進的壓電晶體加工工藝,在-40℃~+85℃工作溫度范圍內實現±20ppm的頻率穩定度,相位噪聲低至-120dBc/Hz@1kHz,有效避免低電壓環境下的信號波動,保障設備計時,數據采樣的精準性,是低功耗電子設備時序控制的優選方案.
.png)
.png)

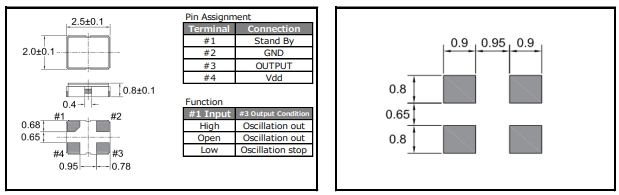

CSX-252FAP32768T|Citizen晶振|低電壓晶振|CSX-252F貼片晶振
| 原廠型號 Originalmodel： | CSX-252FAP32768T | 品牌brand： | 日本Citizen晶振 |
| Manufacturer品牌 | Citizen | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | CSX-252F | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.9mm |
| Frequency頻率 | 32.768kHz | Termination 腳位 | 4pad |
| 輸出方式 Output： | CMOS輸出 | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 1.8V ~ 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | - | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 2.50mm x 2.00mm | 最小包裝數MPQ： | 3000 |
.png)
.png)
CSX-252FAP32768T|Citizen晶振|低電壓晶振|CSX-252F貼片晶振
.png)
CSX-252FAP32768T|Citizen晶振|低電壓晶振|CSX-252F貼片晶振
| CSX-750FBC8000000T | Citizen | CSX-750F | XO | 8 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC12000000T | Citizen | CSX-750F | XO | 12 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC24000000T | Citizen | CSX-750F | XO | 24 MHz | CMOS | 3.3V | ±100ppm |
| CSX-252FAE24000000T | Citizen | CSX-252F | XO | 24 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC3686400T | Citizen | CSX-750F | XO | 3.6864 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC4000000T | Citizen | CSX-750F | XO | 4 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC8000000T | Citizen | CSX-750F | XO | 8 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC25000000T | Citizen | CSX-750F | XO | 25 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FCC25000000T | Citizen | CSX-750F | XO | 25 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC10000000T | Citizen | CSX-750F | XO | 10 MHz | CMOS | 3.3V | ±100ppm |
| CSX-252FAE30720000T | Citizen | CSX-252F | XO | 30.72 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE10000000T | Citizen | CSX-252F | XO | 10 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE35000000T | Citizen | CSX-252F | XO | 35 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAP32768T | Citizen | CSX-252F | XO | 32.768 kHz | CMOS | 1.8V ~ 3.3V | - |
| CSX-750FCC24000000T | Citizen | CSX-750F | XO | 24 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC4000000T | Citizen | CSX-750F | XO | 4 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC27000000T | Citizen | CSX-750F | XO | 27 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FJC44000000T | Citizen | CSX-750F | XO | 44 MHz | CMOS | 3.3V | ±100ppm |
| CSX750PCC6.1760MT | Citizen | CSX-750P | XO | 6.176 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC24.7040MT | Citizen | CSX-750P | XO | 24.704 MHz | CMOS | 5V | ±100ppm |
| CSX-750FCC33333000T | Citizen | CSX-750F | XO | 33.333 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC16384000T | Citizen | CSX-750F | XO | 16.384 MHz | CMOS | 3.3V | ±100ppm |
| CSX-252FAE40000000T | Citizen | CSX-252F | XO | 40 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC35328000T | Citizen | CSX-750F | XO | 35.328 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC45000000T | Citizen | CSX-750F | XO | 45 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC44000000T | Citizen | CSX-750F | XO | 44 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-252FAE33300000T | Citizen | CSX-252F | XO | 33.3 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE12000000T | Citizen | CSX-252F | XO | 12 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE20000000T | Citizen | CSX-252F | XO | 20 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE16934400T | Citizen | CSX-252F | XO | 16.9344 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC66666000T | Citizen | CSX-750F | XO | 66.666 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC29491200T | Citizen | CSX-750F | XO | 29.4912 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC14318180T | Citizen | CSX-750F | XO | 14.31818 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FCC1843200T | Citizen | CSX-750F | XO | 1.8432 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC7372800T | Citizen | CSX-750F | XO | 7.3728 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC18432000T | Citizen | CSX-750F | XO | 18.432 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC32000000T | Citizen | CSX-750F | XO | 32 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FHB25000000T | Citizen | CSX-750F | XO | 25 MHz | CMOS | 2.5V | ±50ppm |
| CSX-750FMB24000000T | Citizen | CSX-750F | XO | 24 MHz | CMOS | 1.8V | ±50ppm |
| CSX-750FBC18432000T | Citizen | CSX-750F | XO | 18.432 MHz | CMOS | 3.3V | ±100ppm |
| CSX750VCB8.000M-UT | Citizen | CSX-750V | VCXO | 8 MHz | CMOS | 5V | ±50ppm |
| CSX750PCC19.4400MT | Citizen | CSX-750P | XO | 19.44 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC15.3600MT | Citizen | CSX-750P | XO | 15.36 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC60.0000MT | Citizen | CSX-750P | XO | 60 MHz | CMOS | 5V | ±100ppm |
| CSX750VCB24.704M-UT | Citizen | CSX-750V | VCXO | 24.704 MHz | CMOS, TTL | 5V | ±50ppm |
| CSX750VCB19.440M-UT | Citizen | CSX-750V | VCXO | 19.44 MHz | CMOS | 5V | ±50ppm |
| CSX750PCC12.3520MT | Citizen | CSX-750P | XO | 12.352 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC72.0000MT | Citizen | CSX-750P | XO | 72 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC16.3840MT | Citizen | CSX-750P | XO | 16.384 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC33.3330MT | Citizen | CSX-750P | XO | 33.333 MHz | CMOS | 5V | ±100ppm |
| CSX750PCC66.6666MT | Citizen | CSX-750P | XO | 66.6666 MHz | CMOS | 5V | ±100ppm |
| CSX750VCB35.328M-UT | Citizen | CSX-750V | VCXO | 35.328 MHz | CMOS | 5V | ±50ppm |
| CSX750VCB32.000M-UT | Citizen | CSX-750V | VCXO | 32 MHz | CMOS | 5V | ±50ppm |
| CSX-252FAE48000000T | Citizen | CSX-252F | XO | 48 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE33000000T | Citizen | CSX-252F | XO | 33 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-252FAE27000000T | Citizen | CSX-252F | XO | 27 MHz | CMOS | 1.8V ~ 3.3V | ±50ppm |
| CSX-750FCC50000000T | Citizen | CSX-750F | XO | 50 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FCC24576000T | Citizen | CSX-750F | XO | 24.576 MHz | CMOS, TTL | 5V | ±100ppm |
| CSX-750FBC7372800T | Citizen | CSX-750F | XO | 7.3728 MHz | CMOS | 3.3V | ±100ppm |
| CSX-750FBC33333000T | Citizen | CSX-750F | XO | 33.333 MHz | CMOS | 3.3V | ±100ppm |
