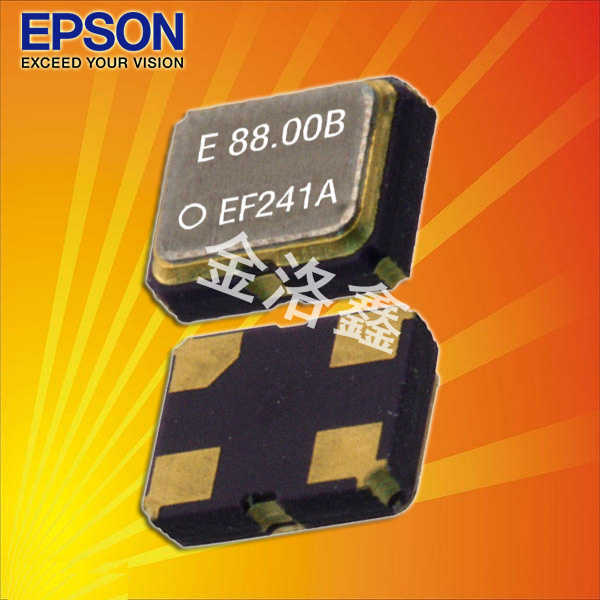

X1G004171001900-12.288MHz-2520mm-日本愛普生晶振

規格型號：69472706
頻率：12.288MHz
尺寸：2.5×2.0×0.8mm
PDF
產品描述：X1G004171001900晶振,頻率12.288MHz,2520mm晶振,日本愛普生晶振,SMD石英晶體振蕩器,SG-210STF有源晶振,超小型晶振,汽車遙控器應用晶振,智能交通燈晶振,通信模塊晶振,醫療設備應用晶振,藍牙模塊晶振.

X1G004171001900-12.288MHz-2520mm-日本愛普生晶振,X1G004171001900晶振,頻率12.288MHz,2520mm晶振,日本愛普生晶振,SMD石英晶體振蕩器,SG-210STF有源晶振,超小型晶振,汽車遙控器應用晶振,智能交通燈晶振,通信模塊晶振,醫療設備應用晶振,藍牙模塊晶振.

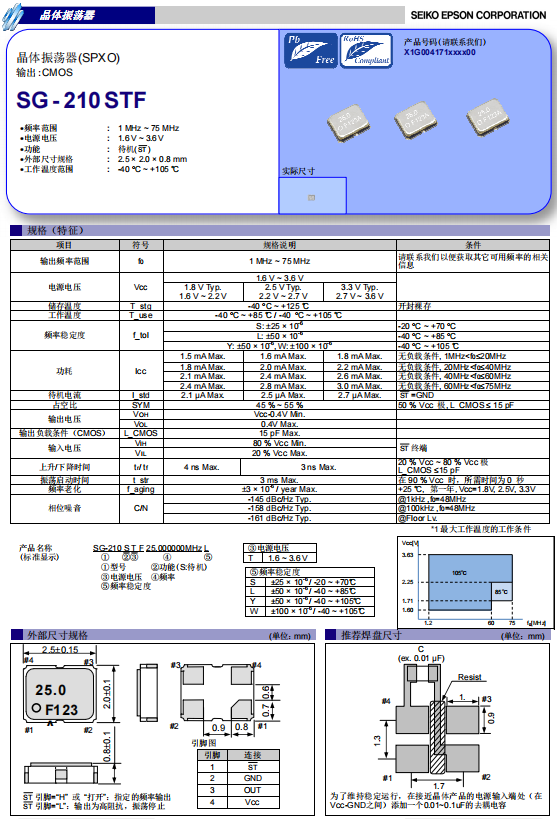

X1G004171001900-12.288MHz-2520mm-日本愛普生晶振,參數圖

項目	符號	規格說明	條件
額定頻率	f_nom	12.288MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	1.6V~3.6V
儲存溫度	T_stg	-40℃~+125℃	開封裸存
工作溫度	T_use	-40℃~ +85℃
頻率穩定度	f_tol	±50 ppm	-40℃~ +85℃
功耗	Icc	1.8mA Max	無負載條件, 1MHz<f0≤20MHz
待機電流	I_std	2.7µA	ST=GND
占空比	SYM	45%~55%	50%Vcc極,L_CMOS≤15pf
輸出電壓	VOH	Vcc-0.4V Min
輸出電壓	VOL	0.4V Max
輸出負載條件(CMOS)	L_CMOS	15pF Max
輸入電壓	VIH	80 % VCC Min.	ST 終端
輸入電壓	VIL	20 % VCC Max.	ST 終端
上升/下降時間	tr/ tf	3 ns Max.	20 % VCC ~ 80 % VCC 極 L_CMOS ≤15 pF
振蕩啟動時間	t_str	3 ms Max.	在 90 % VCC 時，所需時間為 0 秒
頻率老化	f_aging	3 × 10-6 / year Max.	+25 °C, 第一年,Vcc=1.8V, 2.5V, 3.3V
相位噪音	C/N	- 145 dBc/Hz Typ .	@1kHz ,f0=48MHz
		- 158 dBc/Hz Typ .	@100kHz ,f0=48MHz
		- 161 dBc/Hz Typ .	@Floor Lv.

X1G004171001900-12.288MHz-2520mm-日本愛普生晶振 尺寸圖

編碼	型號	頻率	尺寸	輸出方式	電源電壓
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
