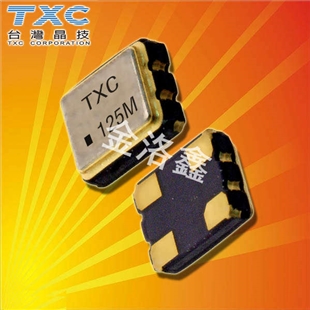

首頁進口晶振7X54070001,TXC有源晶振,耐高溫晶振

7X54070001,TXC有源晶振,耐高溫晶振

規格型號：30256698
頻率：54MHz
尺寸：3225mm
PDF
產品描述：7X54070001,TXC有源晶振,耐高溫晶振,采用低功耗電路設計,工作電流低至幾毫安級別,可有效減少設備整體能耗,尤其適合汽車電子,便攜式工業檢測設備等對功耗敏感的場景.

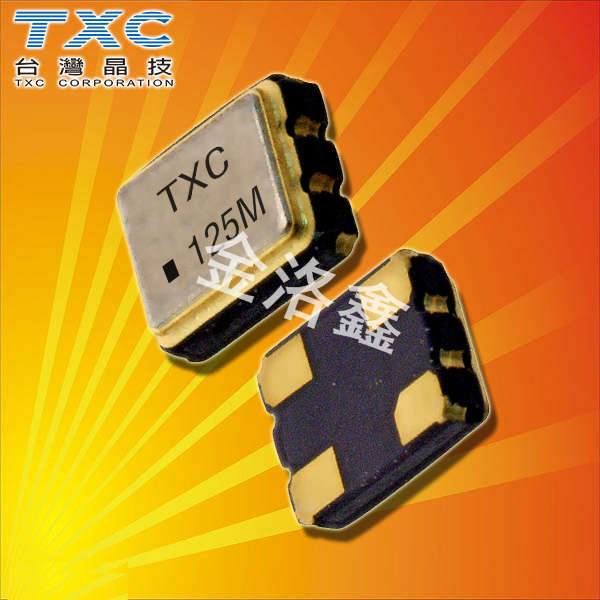

7X54070001,TXC有源晶振,耐高溫晶振
該型號晶振深度融合TXC數十年的石英晶體研發經驗,采用先進的高精度石英晶體切割工藝與密封式封裝技術,在常溫條件下,頻率精度可嚴格控制在±10ppm以內,這一精度水平完全滿足通信,工業控制等領域對時鐘信號的高精準要求.更值得關注的是,即便在高低溫頻繁切換的波動區間,通過內部溫度補償電路的精準調節,其頻率漂移量仍能嚴格控制在行業領先的±25ppm以內,確保設備在復雜溫度環境下仍能保持穩定運行.同時,臺灣TXC晶振在生產過程中建立了嚴格的質量管控體系,從原材料篩選到成品檢測,每一個環節都經過精密把控,使得7X54070001的產品批次間一致性優異,不同批次產品的頻率參數偏差極小,能完美滿足批量生產中對時鐘信號統一性的嚴苛要求,廣泛適配5G通信模塊,工業物聯網傳感器,高精度工業控制芯片,醫療設備控制單元等對頻率穩定性要求極高的元器件,為下游產品的性能穩定性提供有力保障.

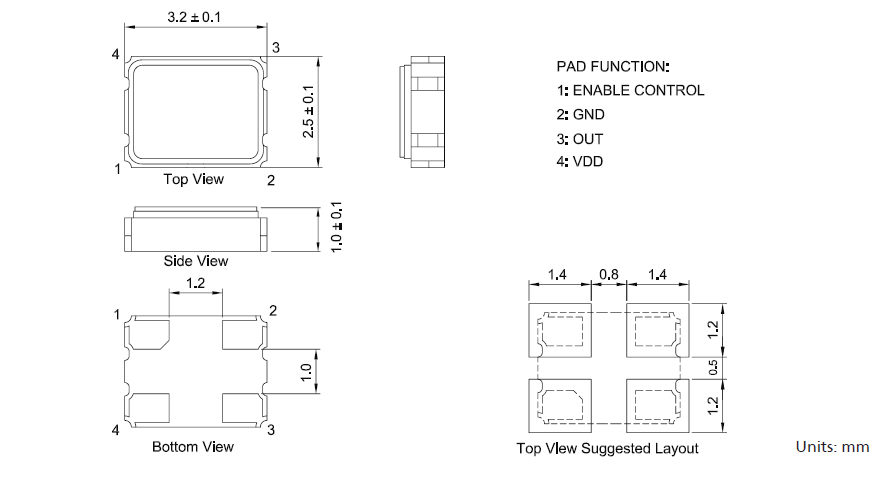

7X54070001,TXC有源晶振,耐高溫晶振

原廠型號 Originalmodel：	7X54070001	品牌brand：	TXC
Manufacturer品牌	TXC	OperatingTemperature溫度	-40°C ~ 105°C
Series型號	7X	Current-Supply(Max)	15mA
Type類型	XO	PackageHeight高度	1.1mm
Frequency頻率	54MHz	Termination 腳位	4 pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	3225石英貼片晶振	最小包裝數MPQ：	3000

7X54070001,TXC有源晶振,耐高溫晶振

7X54070001,TXC有源晶振,耐高溫晶振

8NE-20.000MCJ-T	TXC CORPORATION	8NE	XO (Standard)	20 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-40.000MCJ-T	TXC CORPORATION	8WE	XO (Standard)	40 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-27.000MBJ-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-37.400MBJ-T	TXC CORPORATION	8WE	XO (Standard)	37.4 MHz	CMOS (Low EMI)	3.3V	±50ppm
8NE-38.400MBJ-T	TXC CORPORATION	8NE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-27.000MCJ-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-24.000MBJ-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-25.000MCJ-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-38.400MDJ-T	TXC CORPORATION	8NE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-20.000MBJ-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-24.000MDJ-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-40.000MCJ-T	TXC CORPORATION	8NE	XO (Standard)	40 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-30.000MCJ-T	TXC CORPORATION	8WE	XO (Standard)	30 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-25.000MCJ-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-25.000MBJ-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-37.400MDJ-T	TXC CORPORATION	8WE	XO (Standard)	37.4 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-37.400MBJ-T	TXC CORPORATION	8NE	XO (Standard)	37.4 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-24.576MDJ-T	TXC CORPORATION	8WE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-33.333MCJ-T	TXC CORPORATION	8NE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-20.000MDJ-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-37.400MCJ-T	TXC CORPORATION	8NE	XO (Standard)	37.4 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-33.333MBJ-T	TXC CORPORATION	8NE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	3.3V	±50ppm
8NE-30.000MBJ-T	TXC CORPORATION	8NE	XO (Standard)	30 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-27.000MDJ-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-40.000MDJ-T	TXC CORPORATION	8NE	XO (Standard)	40 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-25.000MBJ-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	3.3V	±50ppm
8NE-24.576MDJ-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-38.400MCJ-T	TXC CORPORATION	8WE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-25.000MDJ-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-38.400MCJ-T	TXC CORPORATION	8NE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-27.000MBJ-T	TXC CORPORATION	8NE	XO (Standard)	27 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-37.400MCJ-T	TXC CORPORATION	8WE	XO (Standard)	37.4 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-25.000MDJ-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-38.400MDJ-T	TXC CORPORATION	8WE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-30.000MBJ-T	TXC CORPORATION	8WE	XO (Standard)	30 MHz	CMOS (Low EMI)	3.3V	±50ppm
8NE-24.000MDJ-T	TXC CORPORATION	8NE	XO (Standard)	24 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-40.000MDJ-T	TXC CORPORATION	8WE	XO (Standard)	40 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-40.000MBJ-T	TXC CORPORATION	8NE	XO (Standard)	40 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-33.333MBJ-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-20.000MCJ-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-30.000MCJ-T	TXC CORPORATION	8NE	XO (Standard)	30 MHz	CMOS (Low EMI)	2.5V	±50ppm
8WE-24.000MCJ-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-27.000MDJ-T	TXC CORPORATION	8NE	XO (Standard)	27 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-24.576MCJ-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	2.5V	±50ppm
8NE-30.000MDJ-T	TXC CORPORATION	8NE	XO (Standard)	30 MHz	CMOS (Low EMI)	1.8V	±50ppm
7CL-32.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	32 MHz	CMOS	3.3V	±25ppm
7CL-32.3330MBD-T	TXC CORPORATION	7CL	XO (Standard)	32.333 MHz	CMOS	3.3V	±25ppm
7CL-14.31818MBD-T	TXC CORPORATION	7CL	XO (Standard)	14.31818 MHz	CMOS	3.3V	±25ppm
7CL-6.000MBD-T	TXC CORPORATION	7CL	XO (Standard)	6 MHz	CMOS	3.3V	±25ppm
7CL-166.000MDD-T	TXC CORPORATION	7CL	XO (Standard)	166 MHz	CMOS	1.8V	±25ppm
7C-12.288MBB-T	TXC CORPORATION	7C	XO (Standard)	12.288 MHz	CMOS	3.3V	±50ppm
7C-33.000MDB-T	TXC CORPORATION	7C	XO (Standard)	33 MHz	CMOS	1.8V	±50ppm
7C-1.8432MBB-T	TXC CORPORATION	7C	XO (Standard)	1.8432 MHz	CMOS	3.3V	±50ppm
7C-38.400MDA-T	TXC CORPORATION	7C	XO (Standard)	38.4 MHz	CMOS	1.8V	±25ppm
7C-49.152MBB-T	TXC CORPORATION	7C	XO (Standard)	49.152 MHz	CMOS	3.3V	±50ppm
7C-54.000MBB-T	TXC CORPORATION	7C	XO (Standard)	54 MHz	CMOS	3.3V	±50ppm
7C-9.8304MBD-T	TXC CORPORATION	7C	XO (Standard)	9.8304 MHz	CMOS	3.3V	±25ppm
7C-2.048MBD-T	TXC CORPORATION	7C	XO (Standard)	2.048 MHz	CMOS	3.3V	±25ppm
7C-8.192MBB-T	TXC CORPORATION	7C	XO (Standard)	8.192 MHz	CMOS	3.3V	±50ppm
7C-30.000MBB-T	TXC CORPORATION	7C	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm
