首頁進口晶振XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

規格型號：63498768
頻率：24MHZ
尺寸：2016MM
PDF
產品描述：XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振,24MHz頻率與主流MCU,通信芯片的時鐘需求高度匹配,可用于高溫環境下的智能家電控制板,汽車電子輔助系統,工業高溫傳感器等設備

XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

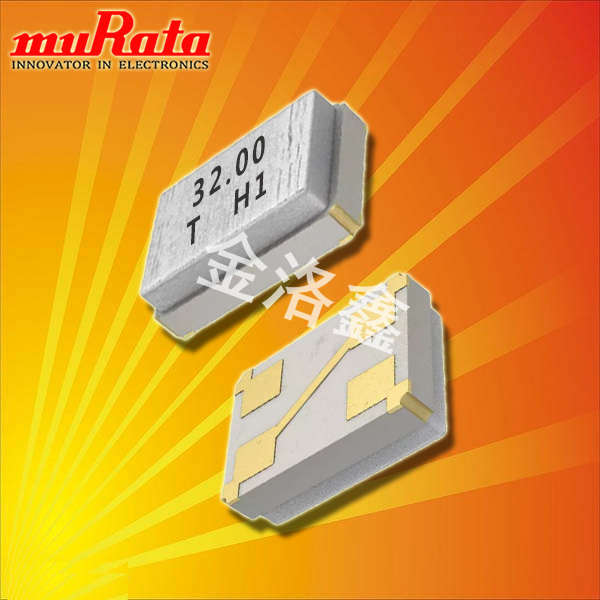

XRCPB24M000F0Z00R0是Murata村田推出的一款兼具小型化與耐高溫特性的石英晶振,核心適配對環境溫度有嚴苛要求的電子設備.型號中"24M000"明確其標稱頻率為24MHz,屬于中高頻晶振范疇,無內置振蕩電路,需搭配外部驅動電路實現時鐘信號輸出,作為村田旗下專注于特殊環境適配的晶振型號,其設計圍繞"耐高溫"核心需求展開,生產工藝與材料選型均經過特殊優化,能在高溫場景下保持穩定的頻率輸出,為設備核心功能(如數據處理,通信同步)提供可靠的時間基準,是高溫環境電子設備的關鍵元器件.

XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

原廠型號 Originalmodel：	XRCPB24M000F0Z00R0	品牌brand：	村田晶振
品牌brand：	Murata村田晶振	ESR（等效串聯電阻）Resistance)	150 Ohms
型號名稱 Modelname：	XRCPB	溫度OperatingTemperature	-40°C~105°C
Type系列：	MHz Crystal	腳位Termination：	4pad
頻率 frequency：	24 MHz	封裝類型PackageType：	4-SMD
FrequencyStability頻率穩定度	±100ppm	高度PackageHeight：	0.50mm
frequencytolerance頻率容差	±100ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	6pF	包裝Packaging：	TapeandReel

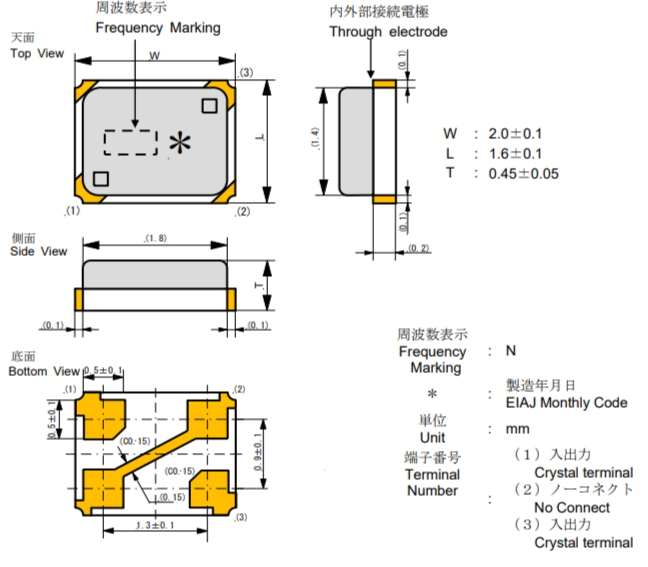

Size/Dimension尺寸	2.00mm x 1.60mm	安裝方式MountingStyle：	SurfaceMount

XRCPB24M000F0Z00R0|耐高溫晶振|2016晶振|Murata村田晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±40ppm	±30ppm	6pF
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	6pF
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	6pF
XRCGB32M000F1H01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±35ppm	6pF
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±50ppm	±100ppm	6pF
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	MHz Crystal	48 MHz	±40ppm	±45ppm	6pF
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±30ppm	±30ppm	6pF
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF
XRCGB25M000F3M18R0	Murata村田晶振	-	MHz Crystal	25 MHz	±40ppm	±30ppm	12pF
XRCGB32M000F2P01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF
XRCGB25M000F2P02R0	Murata村田晶振	-	MHz Crystal	25 MHz	±20ppm	±20ppm	10pF
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±20ppm	±20ppm	6pF
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±20ppm	±20ppm	6pF
XRCGB24M000F2P01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF
XRCGB27M120F3M13R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF
XRCGB32M000FBH50R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±15ppm	10pF
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF
XRCGB16M000FXN00R0	Murata村田晶振	-	MHz Crystal	16 MHz	±40ppm	±40ppm	6pF
XRCGB32M000F1H02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
XRCGB32M000F1H19R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF
XRCGB40M000F5A00R0	Murata村田晶振	-	MHz Crystal	40 MHz	±65ppm	±50ppm	6pF
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±30ppm	6pF
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±35ppm	±30ppm	6pF
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±30ppm	8pF
XRCGB48M000F5A00R0	Murata村田晶振	-	MHz Crystal	48 MHz	±65ppm	±50ppm	6pF
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	MHz Crystal	25 MHz	±35ppm	±15ppm	6pF
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	MHz Crystal	20 MHz	±100ppm	±100ppm	8pF
XRCGB27M120F0L00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±100ppm	6pF
XRCGB32M000F0L00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±50ppm	±100ppm	6pF
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±25ppm	6pF
XRCGB38M400F4M00R0	Murata村田晶振	-	MHz Crystal	38.4 MHz	±40ppm	±45ppm	6pF
XRCGB50M000F4M00R0	Murata村田晶振	-	MHz Crystal	50 MHz	±40ppm	±45ppm	6pF
XRCGB32M000F3M00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±40ppm	±30ppm	6pF
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF
XRCGB32M000F2P02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	10pF
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	30 MHz	±20ppm	±20ppm	6pF
XRCGB27M120F2P02R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±20ppm	10pF
XRCGB32M000F2P26R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	5pF
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	31.25 MHz	±20ppm	±20ppm	6pF
XRCGB27M120F3G00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±30ppm	6pF
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	MHz Crystal	16 MHz	±40ppm	±40ppm	8pF
XRCGB27M600F2C00R0	Murata村田晶振	-	MHz Crystal	27.6 MHz	±20ppm	±20ppm	6pF
XRCGB24M000F1H01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF
XRCGB26M000F1H02R0	Murata村田晶振	-	MHz Crystal	26 MHz	±10ppm	±10ppm	10pF
XRCGB24M000F1H70R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±10ppm	6pF
XRCGB32M000F1H83R0	Murata村田晶振	-	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	MHz Crystal	27 MHz	±35ppm	±15ppm	6pF
XRCGB26M000F3A00R0	Murata村田晶振	-	MHz Crystal	26 MHz	±35ppm	±30ppm	6pF
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	MHz Crystal	26 MHz	±35ppm	±15ppm	8pF
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	MHz Crystal	20 MHz	±45ppm	±30ppm	6pF
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±20ppm	8pF
XRCGB27M120F3P00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±30ppm	6pF
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	MHz Crystal	26 MHz	±20ppm	±20ppm	6pF
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF
