- 規格型號：61612541
- 頻率：32.768K
- 尺寸：3215mm
- 產品描述：RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器,其支持多種低功耗工作模式,可根據設備實際需求靈活切換,進一步優化功耗表現,適配各類低功耗電子設備的設計需求.
RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器
.png)
.png)
RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器
針對便攜式,電池供電類設備對功耗的嚴苛要求,RV-3028-C732.768KHZ采用瑞士微晶晶振創新的低功耗電路設計方案,工作電流低至0.5μA以下(典型值,靜態模式下),相比同類型實時時鐘振蕩器功耗降低約30%-40%.這一超低功耗特性,能大幅減少設備在待機與運行過程中的電量消耗,有效延長設備續航時間--例如在智能手環中,可使設備在單次充電后,僅依靠該晶振維持的實時時鐘功能持續工作數月甚至更久,在物聯網傳感器節點等電池供電設備中,也能顯著降低充電或更換電池的頻率,減少維護成本.同時,其支持多種低功耗工作模式,可根據設備實際需求靈活切換,進一步優化功耗表現,適配各類低功耗電子設備的設計需求.
.png)
.png)
RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器
| 原廠型號 Originalmodel： | RV-3028-C732.768KHZ | 品牌brand： | 瑞士微晶Micro |
| Manufacturer品牌 | 瑞士微晶Micro | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | RV-3028 | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.8mm |
| Frequency頻率 | 32.768K | Termination 腳位 | 8-pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 8-SMD |
| Voltage-Supply電壓 | 1.1V-5.5V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±1ppm | 安裝方式 Installation： | Surfacemount |

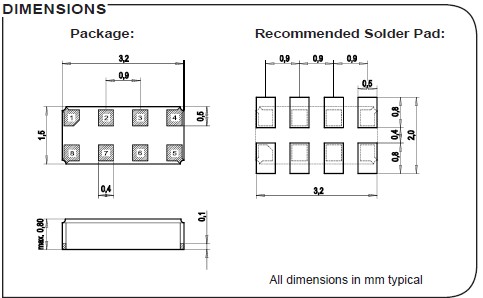

| Size/Dimension尺寸 | 3215mm | 最小包裝數MPQ： | 3000 |
.png)
.png)
RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器
.png)
RV-3028-C732.768KHZ,瑞士微晶Micro晶振,實時時鐘振蕩器
| DSC1123CI2-125.0000 | Microchip | DSC1123 | MEMS | 125MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123CI2-200.0000 | Microchip | DSC1123 | MEMS | 200MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123AE2-100.0000 | Microchip | DSC1123 | MEMS | 100MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1001CI2-027.0000 | Microchip | DSC1001 | MEMS | 27MHz | CMOS | 1.8 V ~ 3.3 V | ±25ppm |
| DSC1123CE1-156.2500 | Microchip | DSC1123 | MEMS | 156.25MHz | LVDS | 2.25 V ~ 3.6 V | ±50ppm |
| DSC1123CI2-150.0000 | Microchip | DSC1123 | MEMS | 150MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123CI2-100.0000 | Microchip | DSC1123 | MEMS | 100MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1103DI2-312.5000 | Microchip | DSC1103 | MEMS | 312.5MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123DI2-050.0000 | Microchip | DSC1123 | MEMS | 50MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123CI2-156.2500 | Microchip | DSC1123 | MEMS | 156.25MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123BL2-125.0000 | Microchip | DSC1123 | MEMS | 125MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123CI5-125.0000 | Microchip | DSC1123 | MEMS | 125MHz | LVDS | 2.25 V ~ 3.6 V | ±10ppm |
| DSC1103CI5-300.0000 | Microchip | DSC1103 | MEMS | 300MHz | LVDS | 2.25 V ~ 3.6 V | ±10ppm |
| DSC1123DL5-200.0000 | Microchip | DSC1123 | MEMS | 200MHz | LVDS | 2.25 V ~ 3.6 V | ±10ppm |
| DSC1123NL5-100.0000 | Microchip | DSC1123 | MEMS | 100MHz | LVDS | 2.25 V ~ 3.6 V | ±10ppm |
| MX574BBD322M265 | Microchip | MX57 | XO (Standard) | 322.265625MHz | HCSL | 2.375 V ~ 3.63 V | ±50ppm |
| DSC1001CI2-018.4320 | Microchip | DSC1001 | MEMS | 18.432MHz | CMOS | 1.8 V ~ 3.3 V | ±25ppm |
| DSC1123CI1-200.0000 | Microchip | DSC1123 | MEMS | 200MHz | LVDS | 2.25 V ~ 3.6 V | ±50ppm |
| DSC1123CI1-156.2500 | Microchip | DSC1123 | MEMS | 156.25MHz | LVDS | 2.25 V ~ 3.6 V | ±50ppm |
| DSC1123AE2-300.0000 | Microchip | DSC1123 | MEMS | 300MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123AI1-125.0000 | Microchip | DSC1123 | MEMS | 125MHz | LVDS | 2.25 V ~ 3.6 V | ±50ppm |
| DSC1123AI2-125.0000 | Microchip | DSC1123 | MEMS | 125MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1122CE1-125.0000 | Microchip | DSC1122 | MEMS | 125MHz | LVPECL | 2.25 V ~ 3.6 V | ±50ppm |
| DSC1123AE2-200.0000 | Microchip | DSC1123 | MEMS | 200MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1103CI1-075.0000 | Microchip | DSC1103 | MEMS | 75MHz | LVDS | 2.25 V ~ 3.6 V | ±50ppm |
| DSC1123AI2-150.0000 | Microchip | DSC1123 | MEMS | 150MHz | LVDS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1123AI1-200.0000 | Microchip | DSC1123 | MEMS | 200MHz | LVDS | 2.25 V ~ 3.6 V | ±50ppm |
| DSC557-0344SI1 | Microchip | DSC557-03 | MEMS | 100MHz | HCSL | 2.25 V ~ 3.6 V | ±50ppm |
| DSC6003CI1A-033.0000 | Microchip | DSC60XX | MEMS | 33MHz | CMOS | 1.71 V ~ 3.63 V | ±50ppm |
| DSC6111CI1A-008.0000 | Microchip | DSC6100 | MEMS | 8MHz | CMOS | 1.71 V ~ 3.63 V | ±50ppm |
| DSC6011JI1A-024.0000 | Microchip | DSC60XX | MEMS | 24MHz | CMOS | 1.71 V ~ 3.63 V | ±50ppm |
| DSC6083CI2A-032K800 | Microchip | DSC60XX | MEMS | 32.8kHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC6083CI2A-307K000 | Microchip | DSC60XX | MEMS | 307kHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC6001CI2A-004.0000 | Microchip | DSC60XX | MEMS | 4MHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC6001CI2A-032.0000 | Microchip | DSC60XX | MEMS | 32MHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC6083CI2A-250K000 | Microchip | DSC60XX | MEMS | 250kHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC6083CI2A-002K000 | Microchip | DSC60XX | MEMS | 2kHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC6101JI2A-024.0000 | Microchip | DSC6100 | MEMS | 24MHz | CMOS | 1.71 V ~ 3.63 V | ±25ppm |
| DSC1001CC1-047.3333 | Microchip | DSC1001 | MEMS | 47.3333MHz | CMOS | 1.8 V ~ 3.3 V | ±50ppm |
| DSC1030BC1-008.0000 | Microchip | DSC1030 | MEMS | 8MHz | CMOS | 3V | ±50ppm |
| DSC1001BC1-024.0000 | Microchip | DSC1001 | MEMS | 24MHz | CMOS | 1.8 V ~ 3.3 V | ±50ppm |
| DSC1033BC1-026.6000 | Microchip | DSC1033 | MEMS | 26MHz | CMOS | 3.3V | ±50ppm |
| DSC1001DI1-001.8432 | Microchip | DSC1001 | MEMS | 1.8432MHz | CMOS | 1.8 V ~ 3.3 V | ±50ppm |
| DSC1033CI1-048.0000 | Microchip | DSC1033 | MEMS | 48MHz | CMOS | 3.3V | ±50ppm |
| DSC1033CI1-024.0000 | Microchip | DSC1033 | MEMS | 24MHz | CMOS | 3.3V | ±50ppm |
| DSC1033DI1-012.0000 | Microchip | DSC1033 | MEMS | 12MHz | CMOS | 3.3V | ±50ppm |
| DSC1033DI1-036.0000 | Microchip | DSC1033 | MEMS | 36MHz | CMOS | 3.3V | ±50ppm |
| DSC1001CI1-027.0000 | Microchip | DSC1001 | MEMS | 27MHz | CMOS | 1.8 V ~ 3.3 V | ±50ppm |
| DSC1033CI1-050.0000 | Microchip | DSC1033 | MEMS | 50MHz | CMOS | 3.3V | ±50ppm |
| DSC6001CI1A-011.0592 | Microchip | DSC60XX | MEMS | 11.0592MHz | CMOS | 1.71 V ~ 3.63 V | ±50ppm |
| DSC1001CI2-024.0000 | Microchip | DSC1001 | MEMS | 24MHz | CMOS | 1.8 V ~ 3.3 V | ±25ppm |
| DSC1033BE2-024.0000 | Microchip | DSC1033 | MEMS | 24MHz | CMOS | 3.3V | ±25ppm |
| DSC1001DI2-038.4000 | Microchip | DSC1001 | MEMS | 38.4MHz | CMOS | 1.8 V ~ 3.3 V | ±25ppm |
| DSC1001CI5-033.3333 | Microchip | DSC1001 | MEMS | 33.3333MHz | CMOS | 1.8 V ~ 3.3 V | ±10ppm |
| DSC1101DM2-012.0000 | Microchip | DSC1101 | MEMS | 12MHz | CMOS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1001DE5-018.4320 | Microchip | DSC1001 | MEMS | 18.432MHz | CMOS | 1.8 V ~ 3.3 V | ±10ppm |
| DSC1101AI2-040.0000 | Microchip | DSC1101 | MEMS | 40MHz | CMOS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1101AI2-080.0000 | Microchip | DSC1101 | MEMS | 80MHz | CMOS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1101AI2-064.0000 | Microchip | DSC1101 | MEMS | 64MHz | CMOS | 2.25 V ~ 3.6 V | ±25ppm |
| DSC1124CI5-100.0000 | Microchip | DSC1124 | MEMS | 100MHz | HCSL | 2.25 V ~ 3.6 V | ±10ppm |
