計時應用中的石英晶體,32.768KHz晶振
來源：http://www.qp11688.cn 作者：金洛鑫電子 2022年06月20
自從推出32.768千赫微型手表晶體已經成為有史以來最受歡迎的計時參考。這應用筆記旨在為的使用提供一些指導,計時應用中的石英晶體，32.768KHz晶振，LFXTAL051643REEL，手表晶振
幾乎在所有情況下，設計師都希望使用簡單的邏輯為了方便起見，貼片振蕩器，通常適用于此類設計的標準是 應該是精確的、低成本的和低功耗的。使用一個手表晶體和CMOS邏輯所有這些標準都可以滿足。
在CMOS振蕩器電路中，功耗隨著頻率而上升 因此將工作頻率降低到a是有意義的 最低；這就是選擇32.768k的原因。第二種方法 降低CMOS電路中功耗的一個目的是減小尺寸 任何被驅動的負載。部分是因為這個原因，手表晶體 設計工作負載典型值為12.5pF，而非更常見的是20或30pF。它還與:(CMOS的類型有關 手表中使用的低電壓會耗盡能量 除非使用低晶體負載電容；(b)保存晶體 將電平驅動至低電平，同時保持足夠的逆變器輸入電壓，以及 (c)允許使用非常小的微調電容器，同時仍然提供 必要的修整范圍。

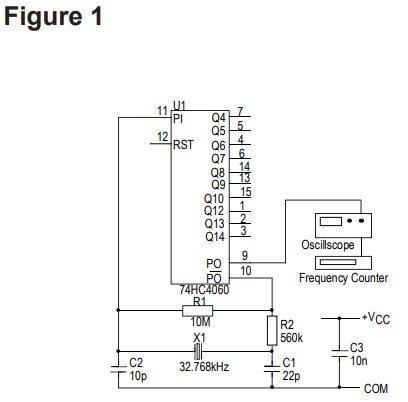

可以滿足CMOS倒相振蕩器的基本要求 利用單個柵極和少量其他組件來提供偏置 和反饋。圖1顯示了這種類型的典型電路。負載 石英晶體看到的電容是以下電容的串聯組合 Cout和Cin連同任何電路一起走失，包括邏輯門 輸入和輸出引腳電容。中使用的組件值 圖1工作良好，并給出了與測量的測試結果的良好相關性 從Saunders 140晶體阻抗計獲得。表面現象晶振的負載電容為: Cout =柵極輸出電容Cin =柵極輸入電容
這給出了6.9pF負載的數字。這遠遠低于要求 圖12.5pF，但是邏輯的輸入和輸出引腳 大門呈現出明顯的負荷。這些附加值需要 添加到6.9pF。這些負載通常在3pF到 每個引腳4pF，但最高可達10pF，具體取決于邏輯 家庭使用。這些額外負載以及中的雜散電容 電路總計約為12.5pF。
.JPG)

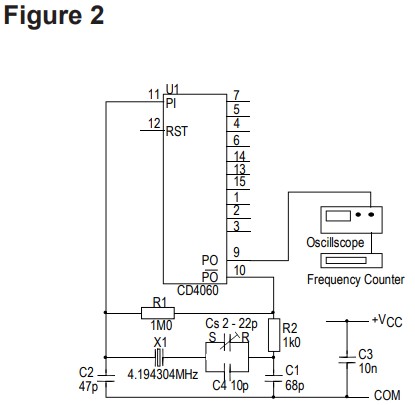

如果需要可微調振蕩器，22pF輸出電容可以 由一個與2pF至22pF并聯的固定10pF電容代替 微調器。為獲得最佳結果，應使用NPO、COG或類似的低溫高效電介質電容，以獲得最佳穩定性。
對這種振蕩器的一個經常表達的要求是 公差，通常是在沒有規定的布局中 對于修剪器來說。除了電容容差的影響，還必須 意識到因為它們的值較低，所以有些可變 歸因于IC的阻抗將導致某種程度的不確定性 相移，因此振蕩頻率。推薦使用修剪器 因此，如果需要優于50ppm的精度， 而不考慮實際的晶體公差。
計時應用中的石英晶體，32.768KHz晶振，LFXTAL051643REEL，手表晶振

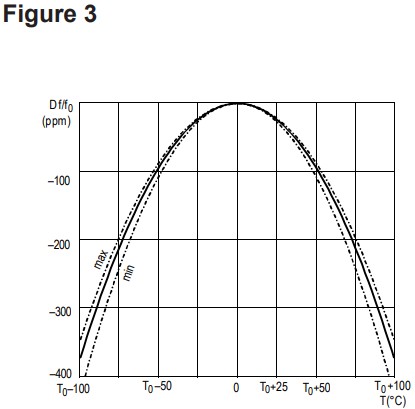

另一個重要的影響是由于溫度的變化。 手表晶體和其他類似類型低于1兆赫有一個拋物線 設計翻轉溫度為25°C時的頻率-溫度特性(見圖3)。人員流動的容忍度 溫度和拋物線曲率常數，通常為3℃ 和0.038 ppm/ C2，這意味著精密公差可以 只能在有限的溫度范圍內維持。這沒什么 結果在一只手表，當然，因為在使用中它保持接近 水晶的周轉溫度，但它可以呈現這種選擇晶體類型的成本效益低于AT切割單位，如果操作 希望溫度范圍比0到50℃更寬。4.194304MHz (32.768kHz x 27) AT切割晶體的類似電路 如圖2所示，C3和C4是為了便于精確 在標準時鐘下校準的晶體的頻率調整 12pF的晶體負載。如果不需要修整，則更換它們 具有18pF或22pF固定單元的電容器(選擇 導致最接近標稱頻率的振蕩)，或者省略它們 并指定在30pF負載下校準的晶體。
.JPG)
.JPG)
幾乎在所有情況下，設計師都希望使用簡單的邏輯為了方便起見，貼片振蕩器，通常適用于此類設計的標準是 應該是精確的、低成本的和低功耗的。使用一個手表晶體和CMOS邏輯所有這些標準都可以滿足。
在CMOS振蕩器電路中，功耗隨著頻率而上升 因此將工作頻率降低到a是有意義的 最低；這就是選擇32.768k的原因。第二種方法 降低CMOS電路中功耗的一個目的是減小尺寸 任何被驅動的負載。部分是因為這個原因，手表晶體 設計工作負載典型值為12.5pF，而非更常見的是20或30pF。它還與:(CMOS的類型有關 手表中使用的低電壓會耗盡能量 除非使用低晶體負載電容；(b)保存晶體 將電平驅動至低電平，同時保持足夠的逆變器輸入電壓，以及 (c)允許使用非常小的微調電容器，同時仍然提供 必要的修整范圍。
