我們提供一流的晶體 (Xtal) 和晶體振蕩器 (XO)，針對您的設計要求進行了優化。我們廣泛的晶體和晶體振蕩器提供：輸出頻率范圍從kHz到GHz完整的輸出組合： CMOS、CML、LVPECL、LVDS、削波正弦波和 HCSL，完整的XO產品組合，包括標準 XO、VCXO、TCXO到超低抖動和高溫XO，從1.0V到3.3V的多個電壓范圍（甚至是傳統的 5V），大量 SMT 封裝選項組合，可滿足您的封裝要求。

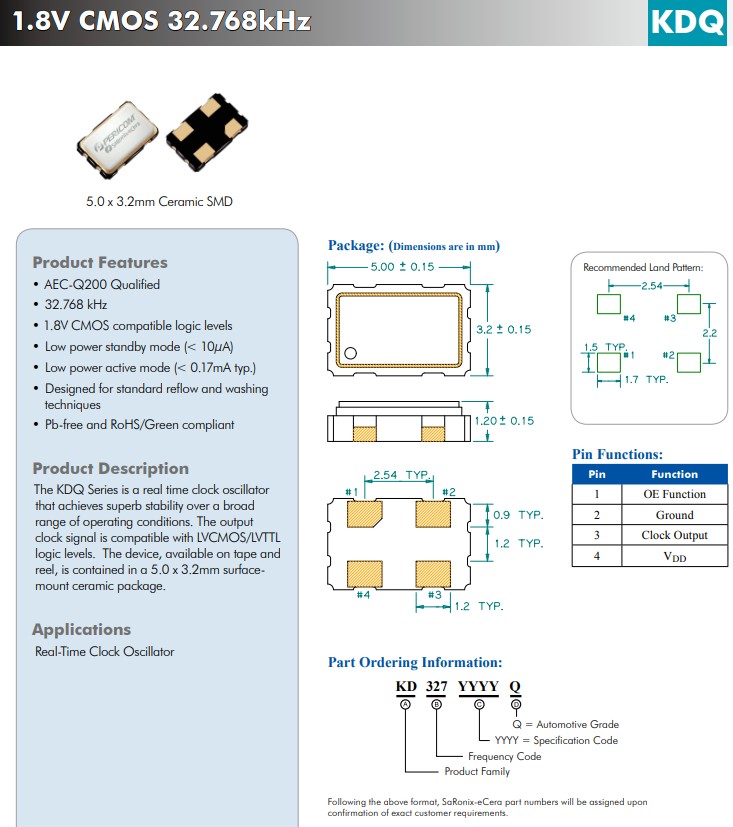

百利通亞陶晶振KDQ系列1.8V，小體積尺寸5.0x3.2mm貼片晶振、32.768kHz、汽車級CMOS晶體振蕩器，KDQ系列是一種實時時鐘振蕩器，可在廣泛的工作條件下實現卓越的穩定性。輸出時鐘信號與 LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用 5.0 x 3.2mm 表面貼裝陶瓷封裝。

產品特點：

符合 AEC-Q200 標準

頻率：32.768K

1.8V CMOS 兼容邏輯電平

低功耗待機模式（< 10μA）

低功耗主動模式（< 0.17mA 典型值）

專為標準回流和清洗技術而設計

無鉛且符合 RoHS/Green 標準

應用于：實時時鐘振蕩器

HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C

產品參數：

亞科 32kHz XO

產品系列 KDQ

合規性（僅汽車支持PPAP）汽車電子晶振

頻率范圍 (MHz) 32.768KHZ

抖動均方根 (ps) <1 ps RMS

穩定性 (PPM) 20 到 50

包裝尺寸（毫米） 3.2 x 2.5

包裝類型陶瓷縫

輸出邏輯 CMOS

電源電壓 (V) 1.8

墊 4

應用：刀片服務器,基站,工控機,多功能打印機,機架服務器,存儲陣列,智能電網, DVD/藍光,安全, GPS ,機頂盒

NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C

DIODES百利通亞陶晶體所生產的石英晶振,貼片晶振,有源晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

KDQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器

KDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器

KDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器

KKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器

KKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器

KKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
