通用型汽車級CX3225SB48000X0WSBCC晶振經常被賣斷貨?
來源：http://www.qp11688.cn 作者：金洛鑫電子 2020年06月04
通用型汽車級CX3225SB48000X0WSBCC晶振經常被賣斷貨?

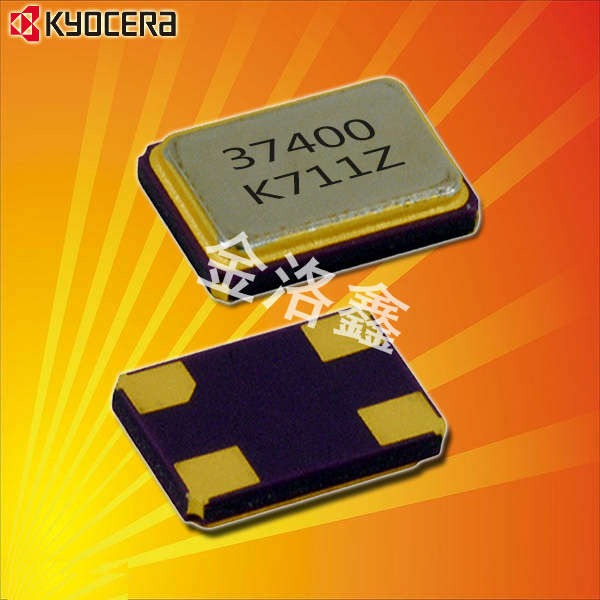

世界范圍內的晶振料號何止千千萬萬,但是總有那么幾顆型號比較”出圈”,不僅被行業里的人熟悉,而且經常會因為需求量太大而缺貨,但仍有大批的訂單在排隊.今天金洛鑫電子就為大家介紹一款,在汽車行業里非常受歡迎的料號,就是日本京セラ株式會社早些年推出的CX3225SB48000X0WSBCC晶振.看到這個料號大家可能覺得平平無奇,分不清跟一般料號有什么區別,其實CX3225SB48000X0WSBCC這一串數字英文的真正叫法,是原廠零件商編號,簡稱是編碼,主要用來辨別詳細具體的規格參數.
開頭的CX3225SB是其系列型號,但是你單看這個型號是無法確定到底是哪一顆料,你只能看出這是屬于京瓷晶振品牌的,封裝尺寸是3.2×2.5mm,金屬面的外殼僅此而已.但是只要客戶提供這一串CX3225SB48000X0WSBCC晶振編碼,就算你對石英晶體并不了解,也可以找到正確的物料.每家晶振廠家基本上都有內部的編碼,而且都不一樣,專業的晶振供應商可以通過編碼就能知道是屬于哪家品牌的.
日本Kyocera Crystal系列產品在亞洲地區的影響力比較大,尤其是在中國大陸,擁有大批的用戶和分銷商,CX3225SB48000X0WSBCC晶振是出貨量比較大的一款,相信大家對它完全的參數比較好奇,接下來就為大家揭曉其神秘的”面紗”.編碼都是有一定的規律的,在系列料號CX3225SB后面有5個數字48000,這幾個數字代表的就是頻率48.000MHz.在頻率后面的字母和數字,也是分別對應不同的參數指標,但在這里不方便仔細述說,但可以肯定的跟大家說的是,這個原廠編碼對應的主要規格,分別是18pF的負載電容,和±30ppm的25±3℃的頻率偏差.
基本上通過這幾個參數指標就可以購買到合適,符合產品要求的晶振了,值得一提的是,CX3225SB48000X0WSBCC晶振符合AEC-Q200汽車級標準,是符合規定的汽車電子晶振,工作溫度達到-40℃~+125℃,屬于相當耐高溫的晶振系列.可以支持無鉛高溫回流焊接,以及貼片機自動貼裝,應用范圍是汽車系統,車載電子,高速車載網絡,車載攝像頭等.
%E8%B0%90%E6%8C%AF%E5%99%A8CX3225SA.jpg "通用型汽車級CX3225SB48000X0WSBCC晶振經常被賣斷貨?")
中國是汽車制造商大國,而且汽車是現代人主要的代步工具,每年換新車或者買車的人非常多,每年銷量達到上千萬臺,所以市場上對CX3225SB48000X0WSBCC晶振的需求非常大,加上這顆物料的性價比高,性能好.通常一輛完整的汽車使用的貼片晶振數量多達幾十顆,因此京瓷公司,專門為汽車級電子晶振單獨設立一個分類,主要針對汽車制造廠商和車載生產廠家這類型客戶,上面的表格是京瓷公司CX3225SB晶振系列的原廠代碼.
通用型汽車級CX3225SB48000X0WSBCC晶振經常被賣斷貨?
世界范圍內的晶振料號何止千千萬萬,但是總有那么幾顆型號比較”出圈”,不僅被行業里的人熟悉,而且經常會因為需求量太大而缺貨,但仍有大批的訂單在排隊.今天金洛鑫電子就為大家介紹一款,在汽車行業里非常受歡迎的料號,就是日本京セラ株式會社早些年推出的CX3225SB48000X0WSBCC晶振.看到這個料號大家可能覺得平平無奇,分不清跟一般料號有什么區別,其實CX3225SB48000X0WSBCC這一串數字英文的真正叫法,是原廠零件商編號,簡稱是編碼,主要用來辨別詳細具體的規格參數.
開頭的CX3225SB是其系列型號,但是你單看這個型號是無法確定到底是哪一顆料,你只能看出這是屬于京瓷晶振品牌的,封裝尺寸是3.2×2.5mm,金屬面的外殼僅此而已.但是只要客戶提供這一串CX3225SB48000X0WSBCC晶振編碼,就算你對石英晶體并不了解,也可以找到正確的物料.每家晶振廠家基本上都有內部的編碼,而且都不一樣,專業的晶振供應商可以通過編碼就能知道是屬于哪家品牌的.
基本上通過這幾個參數指標就可以購買到合適,符合產品要求的晶振了,值得一提的是,CX3225SB48000X0WSBCC晶振符合AEC-Q200汽車級標準,是符合規定的汽車電子晶振,工作溫度達到-40℃~+125℃,屬于相當耐高溫的晶振系列.可以支持無鉛高溫回流焊接,以及貼片機自動貼裝,應用范圍是汽車系統,車載電子,高速車載網絡,車載攝像頭等.

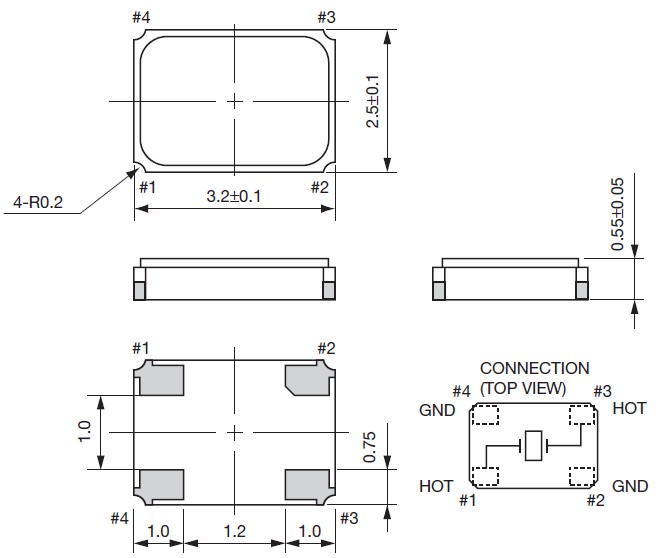

CX3225SB48000X0WSBCC晶振焊腳尺寸圖
| 原廠編碼 | 型號 | 頻率 | 工作溫度 | 尺寸 |
| CX3225SB16000D0GZJC1 | CX3225SB | 16MHz | -25℃~++85℃ | (3.20mmx2.50mm) |
| CX3225SB12000D0GZJC1 | CX3225SB | 12MHz | -25℃~++85℃ | (3.20mmx2.50mm) |
| CX3225SB12000H0PSTC1 | CX3225SB | 12MHz | -40℃~+125℃ | (3.20mmx2.50mm) |
| CX3225SB16000H0PSTC1 | CX3225SB | 16MHz | -40℃~+125℃ | (3.20mmx2.50mm) |
| CX3225SB24000H0PSTC1 | CX3225SB | 24MHz | -40℃~+125℃ | (3.20mmx2.50mm) |
| CX3225SB32000D0PSTC1 | CX3225SB | 32MHz | -40℃~+125℃ | (3.20mmx2.50mm) |
| CX3225SB12000H0FLJCC | CX3225SB | 12MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB26000H0FLJCC | CX3225SB | 26MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB30000H0FLJCC | CX3225SB | 30MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB27000D0FFFCC | CX3225SB | 27MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB12000D0FFJCC | CX3225SB | 12MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB16000D0FFJCC | CX3225SB | 16MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB26000D0FFFCC | CX3225SB | 26MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB32000D0FFFCC | CX3225SB | 32MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0WPTC1 | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0WPSC1 | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0FPJC1 | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB20000H0PSTC2 | CX3225SB | 20MHz | -40℃~125℃ | (3.20mmx2.50mm) |
| CX3225SB24000D0FLJCC | CX3225SB | 24MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB12288H0FLJCC | CX3225SB | 12.288MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB16000D0FLJCC | CX3225SB | 16MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0FLJCC | CX3225SB | 48MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB30000D0FLJCC | CX3225SB | 30MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24000H0FLJCC | CX3225SB | 24MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB27000H0FLJCC | CX3225SB | 27MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB12288D0FLJCC | CX3225SB | 12.288MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24576D0FLJCC | CX3225SB | 24.576MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000H0FLJCC | CX3225SB | 48MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB32000D0FLJCC | CX3225SB | 32MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24576H0FLJCC | CX3225SB | 24.576MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB40000D0FLJCC | CX3225SB | 40MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB16000H0FLJCC | CX3225SB | 16MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB26000D0FLJCC | CX3225SB | 26MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB27000D0FLJCC | CX3225SB | 27MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB20000D0FLJCC | CX3225SB | 20MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB40000D0FPLCC | CX3225SB | 40MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB40000D0FFFCC | CX3225SB | 40MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB16000D0FPLCC | CX3225SB | 16MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24000D0FFJCC | CX3225SB | 24MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB20000D0FPLCC | CX3225SB | 20MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB30000D0FPLCC | CX3225SB | 30MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB38400D0FFFCC | CX3225SB | 38.4MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0FFFCC | CX3225SB | 48MHz | -20℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB27000D0FPLCC | CX3225SB | 27MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0FPJC2 | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB16000E0FPZ25 | CX3225SB | 16MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB16000D0FLJZZ | CX3225SB | 16MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB12000D0FLJCC | CX3225SB | 12MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0FPLCC | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB38400D0FPLCC | CX3225SB | 38.4MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0WPSC2 | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB20000H0FLJCC | CX3225SB | 20MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB32000H0FLJCC | CX3225SB | 32MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB40000H0FLJCC | CX3225SB | 40MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB12000D0FPNCC | CX3225SB | 12MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24000D0FPLCC | CX3225SB | 24MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB32000D0FPLCC | CX3225SB | 32MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX101F-040.000-H0445 | CX3225SB | 40MHz | 0℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB12000D0GPSCC | CX3225SB | 12MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB12288D0GPSCC | CX3225SB | 12.288MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB16000D0GPSCC | CX3225SB | 16MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB20000D0GPSCC | CX3225SB | 20MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24000D0GPSCC | CX3225SB | 24MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24576D0GPSCC | CX3225SB | 24.576MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB26000D0GPSCC | CX3225SB | 26MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB27000D0GPSCC | CX3225SB | 27MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB30000D0GPSCC | CX3225SB | 30MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB32000D0GPSCC | CX3225SB | 32MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB38400D0FLJCC | CX3225SB | 38.4MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB38400H0FLJCC | CX3225SB | 38.4MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB38400D0GPSCC | CX3225SB | 38.4MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB40000D0GPSCC | CX3225SB | 40MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB48000D0GPSCC | CX3225SB | 48MHz | -40℃~+85℃ | (3.20mmx2.50mm) |
| CX3225SB24576H0KESZZ | CX3225SB | 24.576MHz | -10℃~+70℃ | (3.20mmx2.50mm) |
| CX3225SB27000D0FLJZ1 | CX3225SB | 27MHz | -30℃~+85℃ | (3.20mmx2.50mm) |
