7S-24.000MAHE-T|-40~85°C|24MHz|2520mm無源晶振,臺灣TXC晶振,7S-24.000MAHE-T晶振,工作溫度-40~85°C,頻率24MHz,負載10pf,2520mm晶振,無源晶振,石英晶體諧振器,四腳貼片晶振,超小型晶振,小型便攜式消費產品晶振,USB接口晶振,實時時鐘晶振,藍牙模塊晶振.
7S-24.000MAHE-T|-40~85°C|24MHz|2520mm無源晶振 特點
1.非常小的SMD型晶體單元,4片貼片玻璃密封水晶
2.更高的頻率穩定性和可靠性
3.高可靠的環保性能
4.不受RoHS指令限制的密封玻璃含鉛

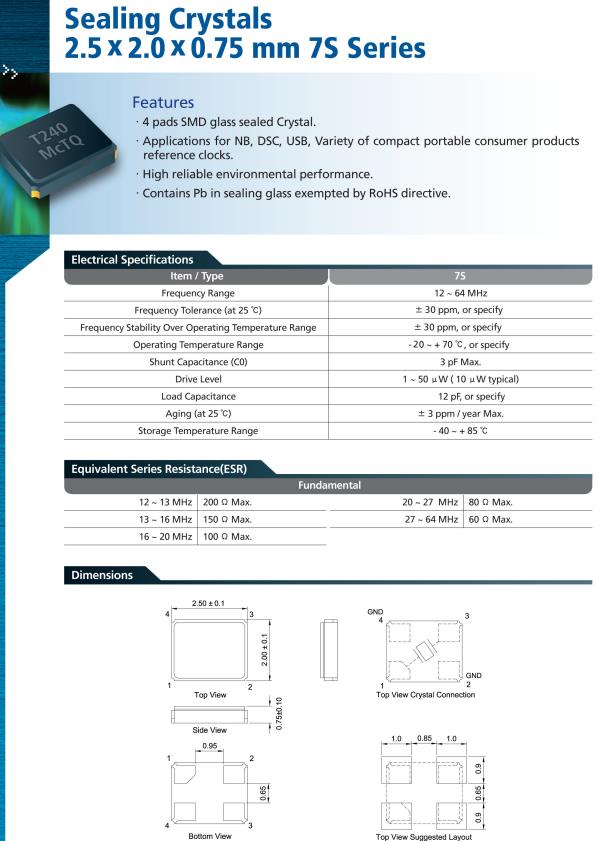

7S-24.000MAHE-T|-40~85°C|24MHz|2520mm無源晶振,參數圖

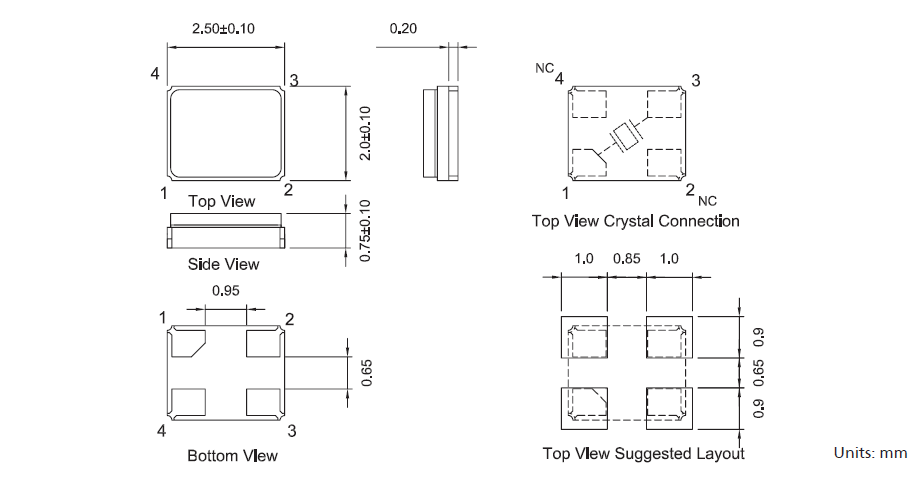

7S-24.000MAHE-T|-40~85°C|24MHz|2520mm無源晶振 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	工作溫度
7S-12.000MAHE-T	TXC晶振	7S	12MHz	±30ppm	-40°C ~ 85°C
7S-19.200MAHE-T	TXC晶振	7S	19.2MHz	±30ppm	-40°C ~ 85°C
7S-16.000MAHE-T	TXC晶振	7S	16MHz	±30ppm	-40°C ~ 85°C
7S-37.400MAHE-T	TXC晶振	7S	37.4MHz	±30ppm	-40°C ~ 85°C
7S-25.000MAHE-T	TXC晶振	7S	25MHz	±30ppm	-40°C ~ 85°C
7S-20.000MAHE-T	TXC晶振	7S	20MHz	±30ppm	-40°C ~ 85°C
7S-26.000MAHE-T	TXC晶振	7S	26MHz	±30ppm	-40°C ~ 85°C
7S-18.432MAHE-T	TXC晶振	7S	18.432MHz	±30ppm	-40°C ~ 85°C
7S-24.576MAHE-T	TXC晶振	7S	24.576MHz	±30ppm	-40°C ~ 85°C
7S-24.000MAHE-T	TXC晶振	7S	24MHz	±30ppm	-40°C ~ 85°C
7S-22.1184MAHE-T	TXC晶振	7S	22.1184MHz	±30ppm	-40°C ~ 85°C
7S12077001	TXC晶振	7S	12MHz	±30ppm	-20°C ~ 70°C
7S-18.432MAAE-T	TXC晶振	7S	18.432MHz	±30ppm	-20°C ~ 70°C
7S-12.000MAAE-T	TXC晶振	7S	12MHz	±30ppm	-20°C ~ 70°C
7S-14.31818MAAE-T	TXC晶振	7S	14.31818MHz	±30ppm	-20°C ~ 70°C
7S-16.000MAAE-T	TXC晶振	7S	16MHz	±30ppm	-20°C ~ 70°C
7S-19.200MAAE-T	TXC晶振	7S	19.2MHz	±30ppm	-20°C ~ 70°C
7S-20.000MAAE-T	TXC晶振	7S	20MHz	±30ppm	-20°C ~ 70°C
7S-24.000MAAE-T	TXC晶振	7S	24MHz	±30ppm	-20°C ~ 70°C
7S-24.576MAAE-T	TXC晶振	7S	24.576MHz	±30ppm	-20°C ~ 70°C
7S-25.000MAAE-T	TXC晶振	7S	25MHz	±30ppm	-20°C ~ 70°C
7S-26.000MAAE-T	TXC晶振	7S	26MHz	±30ppm	-20°C ~ 70°C
7S-27.000MAAE-T	TXC晶振	7S	27MHz	±30ppm	-20°C ~ 70°C
7S-37.400MAAE-T	TXC晶振	7S	37.4MHz	±30ppm	-20°C ~ 70°C
7S-48.000MAAE-T	TXC晶振	7S	48MHz	±30ppm	-20°C ~ 70°C
7S12020001	TXC晶振	7S	12MHz	±20ppm	-20°C ~ 85°C
7S-14.31818MAHE-T	TXC晶振	7S	14.31818MHz	±30ppm	-40°C ~ 85°C
7S-14.31818MAHE-T	TXC晶振	7S	14.31818MHz	±30ppm	-40°C ~ 85°C
7S-14.31818MAHE-T	TXC晶振	7S	14.31818MHz	±30ppm	-40°C ~ 85°C
7S-27.000MAHE-T	TXC晶振	7S	27MHz	±30ppm	-40°C ~ 85°C
7S-27.000MAHE-T	TXC晶振	7S	27MHz	±30ppm	-40°C ~ 85°C
7S-27.000MAHE-T	TXC晶振	7S	27MHz	±30ppm	-40°C ~ 85°C
7S-48.000MAHE-T	TXC晶振	7S	48MHz	±30ppm	-40°C ~ 85°C
7S-48.000MAHE-T	TXC晶振	7S	48MHz	±30ppm	-40°C ~ 85°C
7S-48.000MAHE-T	TXC晶振	7S	48MHz	±30ppm	-40°C ~ 85°C
