CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC,3215mm,-40~85°C,瑞士微晶晶振,CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC晶振,3215mm晶振,工作溫度-40~85°C,32.768KHz晶振,負載9pf,SMD石英晶振,CC7V-TIA陶瓷晶振,低老化晶振,汽車導航晶振,測量儀器晶振,工業設備晶振，醫療設備晶振,智能交通燈控制器晶振.
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC,3215mm,-40~85°C 特點：
1.CC7V-T1A是一種低頻SMT石英晶體單元結合了一個音叉石英晶體諧振器,它在真空環境下工作,采用密封陶瓷包裝與陶瓷蓋
2.高穩定性,低老化,密封保證,適用于惡劣環境的成熟產品
3.卓越的密封與金-錫預制,100%不含鉛,符合rohs標準
4.高抗沖擊和抗振動,可擴展工作溫度范圍
5.小尺寸,低輪廓,重量輕(12.5毫克),具備AEC-Q200汽車資質

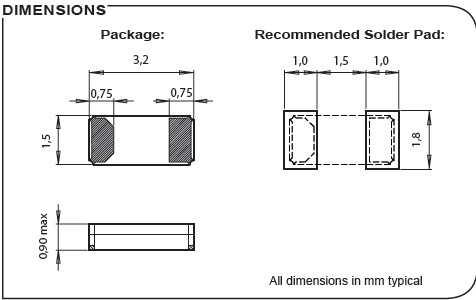

CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC,3215mm,-40~85°C,參數圖

制造商零件編號	制造商	描述	產品類型
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C	Crystals
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C	Crystals
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
