首頁歐美晶振微晶晶振CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC,Micro進口石英貼片晶振,32.768KHz

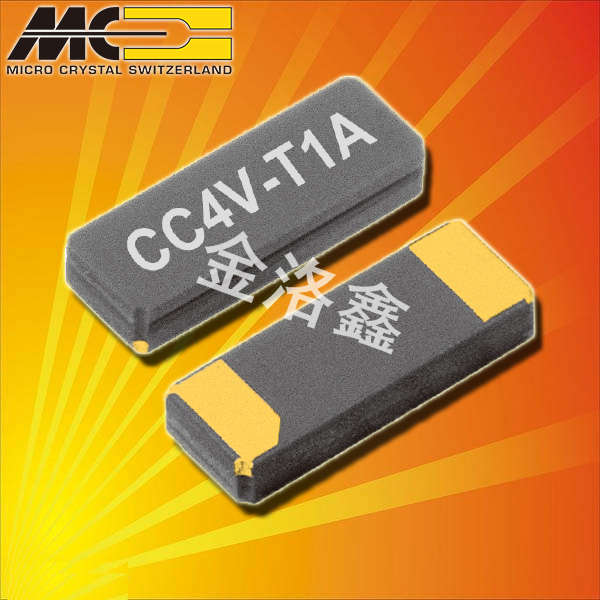

CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC,Micro進口石英貼片晶振,32.768KHz

規格型號：15559428
頻率：32.768KHz
尺寸：5.0×1.9mm
PDF
產品描述：CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC晶振,Micro進口石英貼片晶振,32.768KHz晶振，5019SMD晶振,耐高溫晶振,環保晶振,測量儀器晶振,工業設備晶振,汽車動力轉向轉向器晶振,汽車音影晶振,醫療設備晶振

CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC,Micro進口石英貼片晶振,32.768KHz,CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC晶振,Micro進口石英貼片晶振,32.768KHz晶振，5019SMD晶振,耐高溫晶振,環保晶振,測量儀器晶振,工業設備晶振,汽車動力轉向轉向器晶振,汽車音影晶振,醫療設備晶振.
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC,Micro進口石英貼片晶振,32.768KHz 特點：
1.CC1V-T1A是一種低頻SMT石英晶體單元結合了一個音叉石英晶體諧振器,它在真空環境下工作,采用密封陶瓷包裝與陶瓷蓋
2.高穩定性,低老化,密封保證,適用于惡劣環境的成熟產品
3.卓越的密封與金-錫預制,100%不含鉛,符合rohs標準
4.高抗沖擊和抗振動,可擴展工作溫度范圍,具備AEC-Q200汽車資質

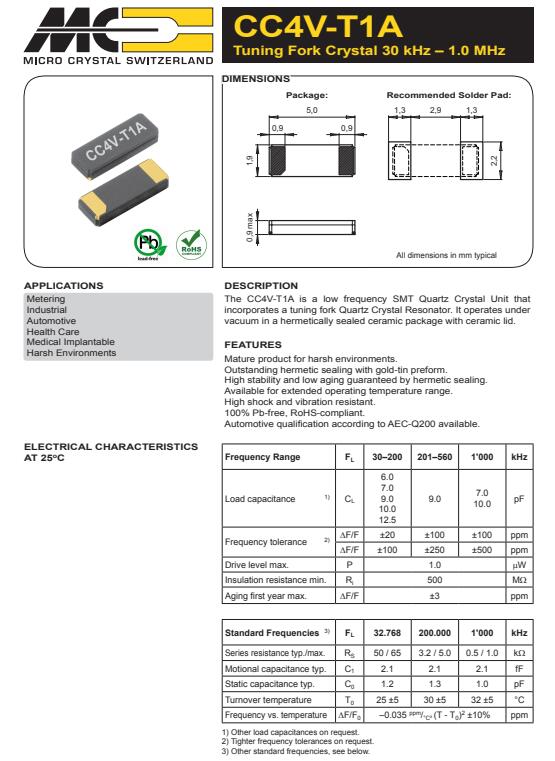

CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC,Micro進口石英貼片晶振,32.768KHz,參數圖

參數	符號	CC4V-T1A
頻率	FL	32.768KHz
負載	CL	12.5pf
頻率公差	ΔF/F	20ppm
最大驅動電平	P	1.0μW
最小絕緣電阻	Ri	500M Ω
首年最大老化	ΔF/F	±3ppm
串聯電阻typ/max	RS	50 / 65KΩ
工作溫度	TOPR	-40 to +85°C
保存溫度	TSTR	–55 to +125°C

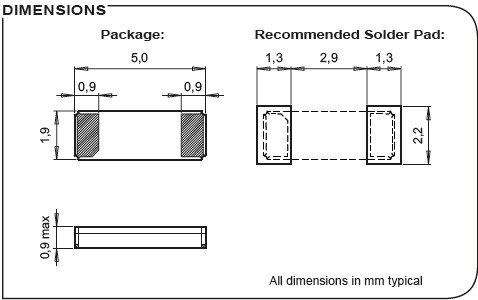

CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC,Micro進口石英貼片晶振,32.768KHz 尺寸圖

制造商零件編號	制造商	描述	產品類型
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC	Micro 晶振	晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C	Crystals
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC	Micro 晶振	晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C	Crystals
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C	Crystals
CC4V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C	Crystals
