- 規格型號：66288208
- 頻率：120MHz
- 尺寸：3.2×2.5mm
- 產品描述：日本京瓷晶振,進口貼片晶振,KC3225L-P3有源晶振,石英晶體振蕩器,KC3225L120.000P3FJ00晶振,頻率120MHz,電壓3.3V,頻率穩定性100ppm,工作溫度-40~85°C,LV-PECL差分晶振,6G模塊晶振,網絡終端設備晶振,電信交換機晶振,移...

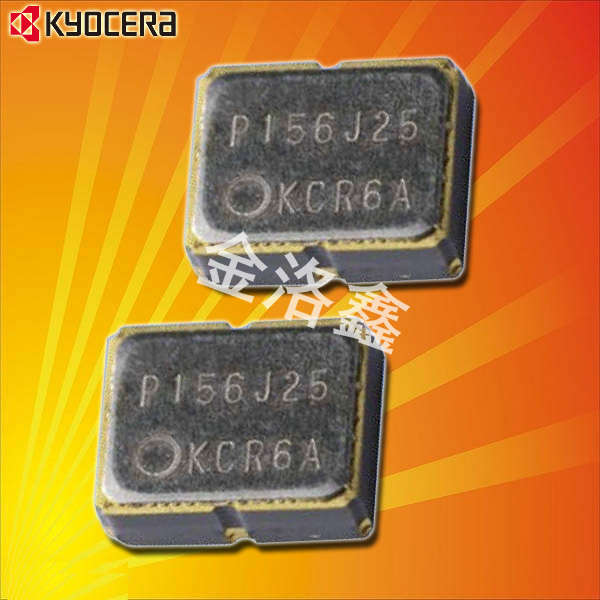

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振
KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振,日本京瓷晶振,進口貼片晶振,KC3225L-P3有源晶振,石英晶體振蕩器,KC3225L120.000P3FJ00晶振,頻率120MHz,電壓3.3V,頻率穩定性100ppm,工作溫度-40~85°C,LV-PECL差分晶振,6G模塊晶振,網絡終端設備晶振,電信交換機晶振,移動通信設備晶振,數碼相機晶振.
KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振 特點：
●小型陶瓷封裝類型
●采用縫隙封裝的高可靠性
●LV-PECL輸出
●電源電壓VCC=3.3V
●可支持±25×10 - 6

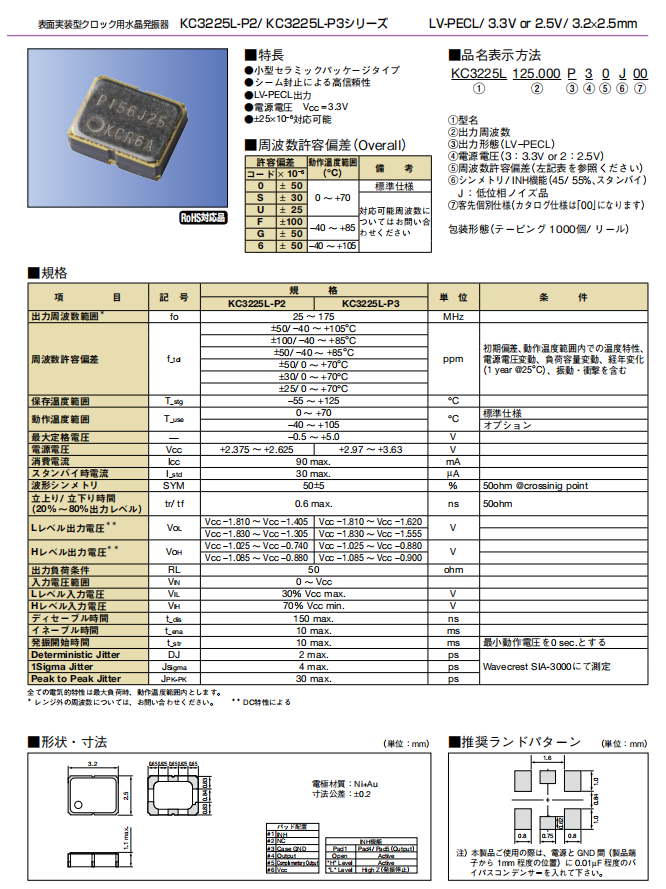

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 120MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率公差（標準） | f_tol | ±100 ppm | +25℃,超出標準的規格說明請聯系我們以便獲取相關信息 |
| 電流消耗 |
ICC
|
90mA Max | |
| 待機電流 |
I_std
|
30μA Max | |
| 對稱性（占空比） | SYM |
50±5%
|
100ohm @crossing point
|
| 低位準輸出電壓 | VOH |
VCC −1.025
~VCC −0.880 |
|
| 高位準輸出電壓 | VOL |
VCC −1.810
~VCC −1.620 |
|
| 輸出負載 | RL | 50Ω |
LV-PECL Output
|
| 輸入電壓 | VIH | 70%Vcc Min | OE terminal |
| VIL | 30%Vcc Max | ||
| 上升下降時間 | tr/tf | 0.6ns Max |
100ohm
|
| 起始時間 | t str | 10ms Max |
@Minimum operating voltage to be 0 sec
|
| 確定性抖動 | DJ | 2ps Max |
Measured with Wavecrest SIA-3000 |
|
1 Sigma 抖動
|
JSigma
|
4ps Max | |
| 峰對峰抖動 |
JPK-PK
|
30ps Max |

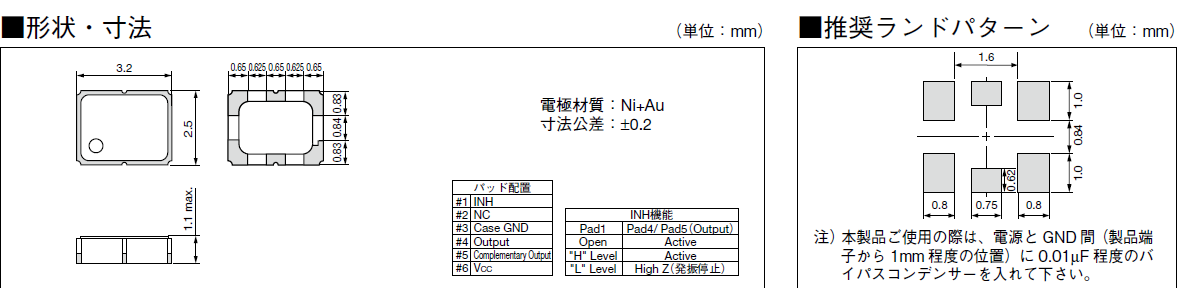

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振 尺寸圖
.png)
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 電壓 | 工作溫度 |
| KC3225K40.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 40MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K40.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 40MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K40.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 40MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K20.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 20MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K20.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 20MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K20.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 20MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K27.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 27MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K27.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 27MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K27.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 27MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K32.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 32MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K32.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 32MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K32.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 32MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K33.3333C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 33.3333MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K33.3333C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 33.3333MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K33.3333C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 33.3333MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K48.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 48MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K48.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 48MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K48.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 48MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K50.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 50MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K50.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 50MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K50.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 50MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K1.84320C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 1.8432MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K1.84320C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 1.8432MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K1.84320C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 1.8432MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K7.37280C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 7.3728MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K7.37280C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 7.3728MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K7.37280C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 7.3728MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K8.00000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 8MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K8.00000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 8MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K8.00000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 8MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K10.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 10MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K10.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 10MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K10.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 10MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K12.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 12MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K12.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 12MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K12.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 12MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K14.7456C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 14.7456MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K14.7456C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 14.7456MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K14.7456C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 14.7456MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K18.4320C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 18.432MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K18.4320C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 18.432MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K18.4320C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 18.432MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K32.7680C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 32.768MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K32.7680C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 32.768MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K32.7680C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 32.768MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K33.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 33MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K33.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 33MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K33.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 33MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K60.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 60MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K60.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 60MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K60.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 60MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K66.6667C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 66.6667MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K66.6667C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 66.6667MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K66.6667C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 66.6667MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225A50.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 50MHz | 3.3V | -40°C ~ 85°C |
| KC3225A50.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 50MHz | 3.3V | -40°C ~ 85°C |
| KC3225A50.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 50MHz | 3.3V | -40°C ~ 85°C |
| KC3225A16.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 16MHz | 3.3V | -40°C ~ 85°C |
| KC3225A16.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 16MHz | 3.3V | -40°C ~ 85°C |
| KC3225A16.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 16MHz | 3.3V | -40°C ~ 85°C |
| KC3225A12.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 12MHz | 3.3V | -10°C ~ 70°C |
| KC3225A12.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 12MHz | 3.3V | -10°C ~ 70°C |
| KC3225A12.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 12MHz | 3.3V | -10°C ~ 70°C |
| KC3225A25.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 25MHz | 3.3V | -10°C ~ 70°C |
| KC3225A25.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 25MHz | 3.3V | -10°C ~ 70°C |
| KC3225A25.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 25MHz | 3.3V | -10°C ~ 70°C |
| KC3225A50.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 50MHz | 3.3V | -10°C ~ 70°C |
| KC3225A50.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 50MHz | 3.3V | -10°C ~ 70°C |
| KC3225A50.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 50MHz | 3.3V | -10°C ~ 70°C |
| KC3225K24.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 24MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K24.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 24MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K24.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 24MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225A125.000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 125MHz | 3.3V | -10°C ~ 70°C |
| KC3225A125.000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 125MHz | 3.3V | -10°C ~ 70°C |
| KC3225A125.000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 125MHz | 3.3V | -10°C ~ 70°C |
| KC3225A100.000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 100MHz | 3.3V | -10°C ~ 70°C |
| KC3225A100.000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 100MHz | 3.3V | -10°C ~ 70°C |
| KC3225A100.000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 100MHz | 3.3V | -10°C ~ 70°C |
| KC3225A125.000C20E00 | AVX Corp/Kyocera Corp | KC3225A-C2, Kyocera | 125MHz | 2.5V | -10°C ~ 70°C |
| KC3225A125.000C20E00 | AVX Corp/Kyocera Corp | KC3225A-C2, Kyocera | 125MHz | 2.5V | -10°C ~ 70°C |
| KC3225A125.000C20E00 | AVX Corp/Kyocera Corp | KC3225A-C2, Kyocera | 125MHz | 2.5V | -10°C ~ 70°C |
| KC3225K16.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 16MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K16.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 16MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K16.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 16MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K80.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 80MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K80.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 80MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K80.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 80MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225A40.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 40MHz | 3.3V | -10°C ~ 70°C |
| KC3225A40.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 40MHz | 3.3V | -10°C ~ 70°C |
| KC3225A40.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 40MHz | 3.3V | -10°C ~ 70°C |
| KC3225A24.5760C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 24.576MHz | 3.3V | -10°C ~ 70°C |
| KC3225A24.5760C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 24.576MHz | 3.3V | -10°C ~ 70°C |
| KC3225A24.5760C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 24.576MHz | 3.3V | -10°C ~ 70°C |
| KC3225A27.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 27MHz | 3.3V | -10°C ~ 70°C |
| KC3225A27.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 27MHz | 3.3V | -10°C ~ 70°C |
| KC3225A27.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 27MHz | 3.3V | -10°C ~ 70°C |
| KC3225A14.3182C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 14.3182MHz | 3.3V | -40°C ~ 85°C |
| KC3225A14.3182C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 14.3182MHz | 3.3V | -40°C ~ 85°C |
| KC3225A14.3182C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 14.3182MHz | 3.3V | -40°C ~ 85°C |
| KC3225A20.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 20MHz | 3.3V | -40°C ~ 85°C |
| KC3225A20.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 20MHz | 3.3V | -40°C ~ 85°C |
| KC3225A20.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 20MHz | 3.3V | -40°C ~ 85°C |
| KC3225A1.84320C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 1.8432MHz | 3.3V | -40°C ~ 85°C |
| KC3225A1.84320C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 1.8432MHz | 3.3V | -40°C ~ 85°C |
| KC3225A1.84320C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 1.8432MHz | 3.3V | -40°C ~ 85°C |
| KC3225A19.2000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 19.2MHz | 3.3V | -40°C ~ 85°C |
| KC3225A19.2000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 19.2MHz | 3.3V | -40°C ~ 85°C |
| KC3225A19.2000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 19.2MHz | 3.3V | -40°C ~ 85°C |
| KC3225A48.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 48MHz | 3.3V | -40°C ~ 85°C |
| KC3225A48.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 48MHz | 3.3V | -40°C ~ 85°C |
| KC3225A48.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 48MHz | 3.3V | -40°C ~ 85°C |
| KC3225A12.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 12MHz | 3.3V | -40°C ~ 85°C |
| KC3225A12.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 12MHz | 3.3V | -40°C ~ 85°C |
| KC3225A12.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 12MHz | 3.3V | -40°C ~ 85°C |
| KC3225A4.00000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 4MHz | 3.3V | -40°C ~ 85°C |
| KC3225A4.00000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 4MHz | 3.3V | -40°C ~ 85°C |
| KC3225A4.00000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 4MHz | 3.3V | -40°C ~ 85°C |
| KC3225A40.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 40MHz | 3.3V | -40°C ~ 85°C |
| KC3225A40.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 40MHz | 3.3V | -40°C ~ 85°C |
| KC3225A40.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 40MHz | 3.3V | -40°C ~ 85°C |
| KC3225A10.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 10MHz | 3.3V | -40°C ~ 85°C |
| KC3225A10.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 10MHz | 3.3V | -40°C ~ 85°C |
| KC3225A10.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 10MHz | 3.3V | -40°C ~ 85°C |
| KC3225A7.37280C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 7.3728MHz | 3.3V | -40°C ~ 85°C |
| KC3225A7.37280C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 7.3728MHz | 3.3V | -40°C ~ 85°C |
| KC3225A7.37280C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 7.3728MHz | 3.3V | -40°C ~ 85°C |
| KC3225A27.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 27MHz | 3.3V | -40°C ~ 85°C |
| KC3225A27.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 27MHz | 3.3V | -40°C ~ 85°C |
| KC3225A27.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 27MHz | 3.3V | -40°C ~ 85°C |
| KC3225A54.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 54MHz | 3.3V | -10°C ~ 70°C |
| KC3225A54.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 54MHz | 3.3V | -10°C ~ 70°C |
| KC3225A54.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 54MHz | 3.3V | -10°C ~ 70°C |
| KC3225A60.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 60MHz | 3.3V | -40°C ~ 85°C |
| KC3225A60.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 60MHz | 3.3V | -40°C ~ 85°C |
| KC3225A60.0000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 60MHz | 3.3V | -40°C ~ 85°C |
| KC3225A100.000C20E00 | AVX Corp/Kyocera Corp | KC3225A-C2, Kyocera | 100MHz | 2.5V | -10°C ~ 70°C |
| KC3225A100.000C20E00 | AVX Corp/Kyocera Corp | KC3225A-C2, Kyocera | 100MHz | 2.5V | -10°C ~ 70°C |
| KC3225A100.000C20E00 | AVX Corp/Kyocera Corp | KC3225A-C2, Kyocera | 100MHz | 2.5V | -10°C ~ 70°C |
| KC3225A125.000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 125MHz | 3.3V | -40°C ~ 85°C |
| KC3225A125.000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 125MHz | 3.3V | -40°C ~ 85°C |
| KC3225A125.000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 125MHz | 3.3V | -40°C ~ 85°C |
| KC3225A100.000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 100MHz | 3.3V | -40°C ~ 85°C |
| KC3225A100.000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 100MHz | 3.3V | -40°C ~ 85°C |
| KC3225A100.000C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 100MHz | 3.3V | -40°C ~ 85°C |
| KC3225A72.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 72MHz | 3.3V | -10°C ~ 70°C |
| KC3225A72.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 72MHz | 3.3V | -10°C ~ 70°C |
| KC3225A72.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 72MHz | 3.3V | -10°C ~ 70°C |
| KC3225A106.250C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 106.25MHz | 3.3V | -10°C ~ 70°C |
| KC3225A106.250C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 106.25MHz | 3.3V | -10°C ~ 70°C |
| KC3225A106.250C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 106.25MHz | 3.3V | -10°C ~ 70°C |
| KC3225K24.5760C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 24.576MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K24.5760C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 24.576MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K24.5760C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 24.576MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K3.68640C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 3.6864MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K3.68640C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 3.6864MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K3.68640C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 3.6864MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K4.00000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 4MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K4.00000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 4MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K4.00000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 4MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K14.3182C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 14.3182MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K14.3182C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 14.3182MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K14.3182C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 14.3182MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K16.3840C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 16.384MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K16.3840C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 16.384MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K16.3840C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 16.384MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K2.04800C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 2.048MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K2.04800C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 2.048MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K2.04800C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 2.048MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K22.5792C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 22.5792MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K22.5792C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 22.5792MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K22.5792C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 22.5792MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K28.6364C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 28.6364MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K28.6364C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 28.6364MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K28.6364C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 28.6364MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K75.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 75MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K75.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 75MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K75.0000C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 75MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K12.2880C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 12.288MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K12.2880C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 12.288MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225K12.2880C1GE00 | AVX Corp/Kyocera Corp | KC3225K, Kyocera | 12.288MHz | 1.6 V ~ 3.63 V | -40°C ~ 85°C |
| KC3225A48.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 48MHz | 3.3V | -10°C ~ 70°C |
| KC3225A48.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 48MHz | 3.3V | -10°C ~ 70°C |
| KC3225A48.0000C30E00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 48MHz | 3.3V | -10°C ~ 70°C |
| KC3225A24.5760C3GE00 | AVX Corp/Kyocera Corp | KC3225A-C3, Kyocera | 24.576MHz | 3.3V | -40°C ~ 85°C |
深 圳 市 金 洛 電 子 有 限 公 司代理:EPSON,KDS,SEIKO,CITIZEN
電話:0755-27837162
手機:13510569637
郵箱:jinluodz@163.com
Q Q:657116624
地址:深圳市寶安41區甲岸路19號
網址:http://www.qp11688.cn
業務經理
客服經理
