首頁進口晶振VTEUPCJANF-19.440000|機頂盒應用晶振|壓控晶振|高清電視晶振

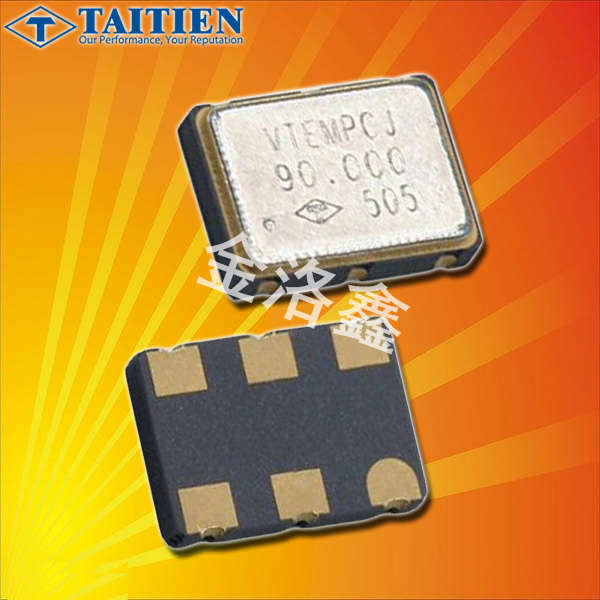

VTEUPCJANF-19.440000|機頂盒應用晶振|壓控晶振|高清電視晶振

規格型號：44921555
頻率：19.44 MHz
尺寸：7050mm
PDF
產品描述：VTEUPCJANF-19.440000|機頂盒應用晶振|壓控晶振|高清電視晶振,以19.440000MHz精準頻率為基礎,搭載壓控(VCXO)技術,可通過外部電壓微調實現頻率動態校準,完美適配機頂盒的信號接收與解碼需求.

VTEUPCJANF-19.440000|機頂盒應用晶振|壓控晶振|高清電視晶振
VTEUPCJANF-19.440000晶振憑借19.440000MHz的通用影音頻率,可廣泛適配各類機頂盒(如IPTV機頂盒,衛星機頂盒晶振)與高清電視(如OLED電視,MiniLED電視).壓控技術使其無需復雜調試即可兼容不同品牌的硬件設計,降低設備廠商的研發成本,同時,其通過嚴格的電磁兼容性(EMC)測試,能抵御家庭環境中其他電子設備(如路由器,手機)的電磁干擾,確保影音信號傳輸與處理不受影響,為影音設備廠商提供高適配性,高可靠性的頻率方案.

VTEUPCJANF-19.440000|機頂盒應用晶振|壓控晶振|高清電視晶振

原廠型號 Originalmodel：	VTEUPCJANF-19.440000	品牌brand：	Taitien
Manufacturer品牌	Taitien	OperatingTemperature溫度	-20°C ~ 70°C
Series型號	VT智能手機專用晶振	Current-Supply(Max)	23mA
Type類型	VCXO	PackageHeight高度	1.90mm
Frequency頻率	19.44 MHz	Termination 腳位	6pad
輸出方式 Output：	CMOS	PackageType 封裝類型	6-SMD
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包裝數MPQ：	1000

VTEUPCJANF-19.440000|機頂盒應用晶振|壓控晶振|高清電視晶振

OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
OXETDCJANF-0.032768	Taitien	OX	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-20°C ~ 70°C
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TZKTADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb	-30°C ~ 85°C
TXEABLSANF-24.000000	Taitien	TX	VCTCXO	24 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABLSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32 MHz	Clipped Sine Wave	1.8V	±1.5ppm	-20°C ~ 70°C
TXEAADSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TXETALSANF-10.000000	Taitien	TX	TCXO	10 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TYETBCSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETBLSANF-40.000000	Taitien	TY	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYEAPLSANF-40.000000	Taitien	TY	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TYETACSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYEAACSANF-38.400000	Taitien	TY	VCTCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
VLCUWCWTNF-100.000000	Taitien	VLCU	VCXO	100 MHz	Sine Wave	5V	±35ppm	-20°C ~ 70°C
TSEAALJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWETALJANF-40.000000	Taitien	TW	TCXO	40 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWEAKLJANF-20.000000	Taitien	TW	VCTCXO	20 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLJANF-10.000000	Taitien	TT	TCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAKLJANF-10.000000	Taitien	TT	VCTCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLSANF-10.000000	Taitien	TT	TCXO	10 MHz	Clipped Sine Wave	3.3V	±280ppb	-40°C ~ 85°C
TSEATLJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±4.6ppm	-40°C ~ 85°C
TWETMCJANF-10.000000	Taitien	TW	TCXO	10 MHz	CMOS	3.3V	±100ppb	-20°C ~ 70°C
TTEAALJANF-50.000000	Taitien	TT	VCTCXO	50 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
NNENCLJNNF-10.000000	Taitien	NN	OCXO	10 MHz	CMOS	3.3V	±20ppb	-40°C ~ 85°C
NI-10M-2400	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-30°C ~ 70°C
NI-10M-2403	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-40°C ~ 85°C
NI-10M-2503	Taitien	NI-10M-2500	OCXO	10 MHz	Sine Wave	5V	±3ppb	-40°C ~ 85°C
NI-100M-2900	Taitien	NI-100M-2900	OCXO	100 MHz	Sine Wave	12V	±50ppb	-40°C ~ 85°C
NA-100M-6822	Taitien	NA-100M-6800	OCXO	100 MHz	Sine Wave	12V	±100ppb	-40°C ~ 85°C
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
TXETCLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
TXETDDSANF-16.000000	Taitien	TX	TCXO	16 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETDCSANF-20.000000	Taitien	TX	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-20°C ~ 70°C
TXETBLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABDSANF-32.000000	Taitien	TX	VCTCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-30°C ~ 85°C
TXETDDSANF-30.000000	Taitien	TX	TCXO	30 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETBLSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEAPDSANF-19.200000	Taitien	TX	VCTCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-30°C ~ 85°C
TXEAPLSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TXEACDSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXEACDSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXETBLSANF-27.000000	Taitien	TX	TCXO	27 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETBLSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETALSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TXEAACSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TXEAADSANF-25.000000	Taitien	TX	VCTCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TYETBLSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYETBCSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETACSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYETACSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
PYEUCJJANF-100.000000	Taitien	FASTXO	XO (Standard)	100 MHz	CMOS	2.8V ~ 3.3V	±20ppm	-40°C ~ 105°C
TWEAALSANF-10.000000	Taitien	TW	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±500ppb	-40°C ~ 85°C
TTETKLJANF-30.720000	Taitien	TT	TCXO	30.72 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAMCSANF-10.000000	Taitien	TT	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±100ppb	-20°C ~ 70°C
OYKTGLJANF-0.032768	Taitien	OY	XO (Standard)	32.768 kHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
OYETDLJANF-25.000000	Taitien	OY	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETCLSANF-25.000000	Taitien	TX	TCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
