首頁進口晶振SG-8018CA20.000000MHZ,7050四腳貼片晶振,車規晶振

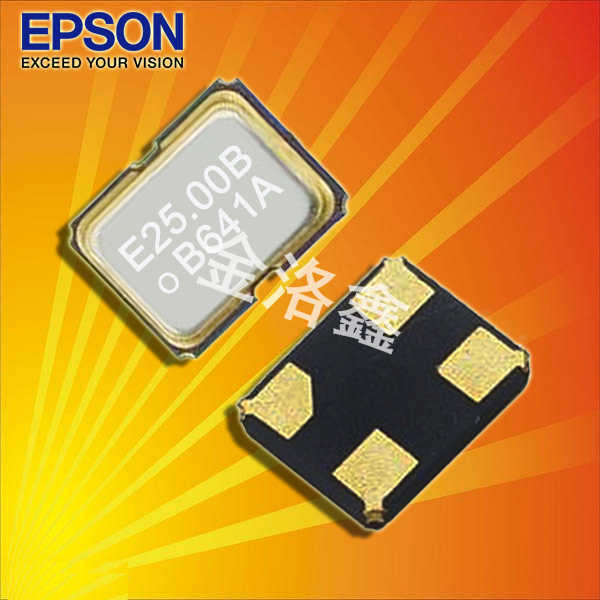

SG-8018CA20.000000MHZ,7050四腳貼片晶振,車規晶振

規格型號：96781268
頻率：20 MHz
尺寸：7050mm
PDF
產品描述：SG-8018CA20.000000MHZ,7050四腳貼片晶振,車規晶振,憑借20MHZ標準頻率,兼容車載中控,儀表盤,車載充電器等多種汽車電子設備規格符合行業通用封裝標準,無需額外調整PCB設計即可快速替換升級,降低研發與生產成本.

SG-8018CA20.000000MHZ,7050四腳貼片晶振,車規晶振
SG-8018CA20.000000MHZ晶振采用高精度石英晶片,經過激光微調工藝確保頻率精度,在-40℃至+125℃寬溫范圍內頻率漂移控制在極小范圍,適配汽車電子對動態環境下頻率穩定性的要求.7050四腳貼片封裝具備良好的散熱性能,可快速傳導工作時產生的微量熱量,避免溫度過高影響性能.此外,產品符合RoHS環保標準,無鉛無鹵素,滿足汽車行業綠色生產要求,適用于新能源汽車電控系統,車載雷達等高端應用場景.

SG-8018CA20.000000MHZ,7050四腳貼片晶振,車規晶振

原廠型號 Originalmodel：	SG-8018CA 20.000000MHZ	品牌brand：	EPOSN晶體
Manufacturer品牌	EPOSN	OperatingTemperature溫度	-40+105
Series型號	VT-501	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	1.2mm
Frequency頻率	20M	Termination 腳位	4-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	1.62-3.63V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	7050表面貼裝晶振	最小包裝數MPQ：	1000

SG-8018CA20.000000MHZ,7050四腳貼片晶振,車規晶振

DSC1123CI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AE2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1001CI2-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1123CE1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103DI2-312.5000	Microchip	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123DI2-050.0000	Microchip	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123BL2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI5-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1103CI5-300.0000	Microchip	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123DL5-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123NL5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
MX574BBD322M265	Microchip	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V	±50ppm
DSC1001CI2-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1123CI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123AE2-300.0000	Microchip	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123AI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1122CE1-125.0000	Microchip	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V	±50ppm
DSC1123AE2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103CI1-075.0000	Microchip	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123AI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±50ppm
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V	±50ppm
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V	±50ppm
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V	±50ppm
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±50ppm
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V	±50ppm
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V	±50ppm
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V	±50ppm
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±25ppm
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±10ppm
