首頁進口晶振愛普生晶振Q24FA20H00132-24.576MHz-8pf-日本愛普生進口晶振

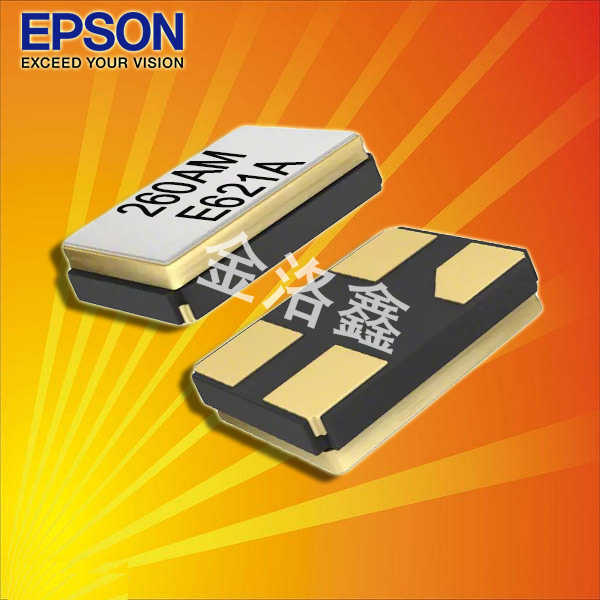

Q24FA20H00132-24.576MHz-8pf-日本愛普生進口晶振

規格型號：31394358
頻率：24.576MHz
尺寸：2.5×2.0×0.55mm
PDF
產品描述：Q24FA20H00132晶振,頻率24.576MHz,負載8pf,日本愛普生進口晶振,2520mm晶振,小體積晶振,FA-20H無源晶振,石英晶體諧振器,四腳貼片晶振,高精度晶振,移動電話晶振,藍牙模塊晶振,無線局域網晶振,ISM頻段電臺廣播晶振,MPU時...

Q24FA20H00132-24.576MHz-8pf-日本愛普生進口晶振,Q24FA20H00132晶振,頻率24.576MHz,負載8pf,日本愛普生進口晶振,2520mm晶振,小體積晶振,FA-20H無源晶振,石英晶體諧振器,四腳貼片晶振,高精度晶振,移動電話晶振,藍牙模塊晶振,無線局域網晶振,ISM頻段電臺廣播晶振,MPU時鐘晶振.

Q24FA20H00132-24.576MHz-8pf-日本愛普生進口晶振,參數圖

項目	符號	規格說明	條件
額定頻率	f_nom	24.576MHz	請聯系我們以便獲取其它可用頻率的相關信息
儲存溫度	T_stg	-40℃~+125℃	裸存
工作溫度	T_use	-20℃~ +75℃
激勵功率	DL	200μW Max	推薦1μW ~100μW
頻率公差（標準）	f_tol	±15 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
頻率溫度特征（標準）	f_tem	±15 ppm	-20 °C ~ +75 °C 對于超出標準的規格說明，請聯系我們以便獲取相關信息
負載電容	CL	8pF	可指定
串聯電阻	R1	80Ω Max
頻率老化	f_age	±1 ppm	+25℃,第一年

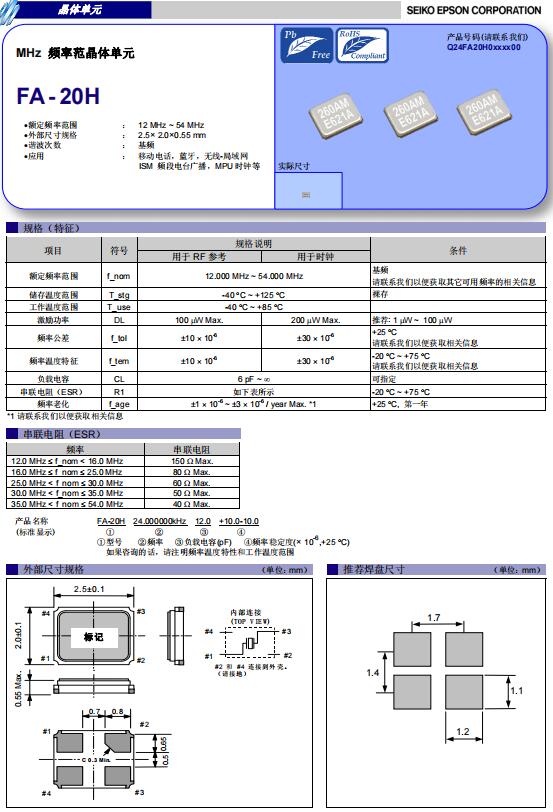

Q24FA20H00132-24.576MHz-8pf-日本愛普生進口晶振 尺寸圖

編碼	尺寸	型號	頻率	負載	工作溫度
Q24FA20H00001	2.5 x 2 x 0.55mm	FA-20H	18.000000 MHz	10 pF	-30 to +85 °C
Q24FA20H00003	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	-20 to +70 °C
Q24FA20H00005	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00006	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	-20 to +70 °C
Q24FA20H00008	2.5 x 2 x 0.55mm	FA-20H	48.000000 MHz	7 pF	-20 to +70 °C
Q24FA20H00029	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8 pF	-20 to +75 °C
Q24FA20H00031	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00036	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	11.5 pF	-20 to +75 °C
Q24FA20H00038	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	-20 to +70 °C
Q24FA20H00039	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00044	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00047	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8.5 pF	-20 to +85 °C
Q24FA20H00050	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	-40 to +85 °C
Q24FA20H00051	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	-15 to +75 °C
Q24FA20H00052	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00053	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	-20 to +70 °C
Q24FA20H00054	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	-20 to +75 °C
Q24FA20H00059	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	6 pF	-20 to +75 °C
Q24FA20H00066	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00069	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	-30 to +85 °C
Q24FA20H00070	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	-20 to +75 °C
Q24FA20H00073	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00074	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10.5 pF	-20 to +75 °C
Q24FA20H00077	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	-20 to +75 °C
Q24FA20H00079	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	16 pF	-20 to +75 °C
Q24FA20H00085	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00086	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	-20 to +75 °C
Q24FA20H00087	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	-20 to +70 °C
Q24FA20H00092	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	-40 to +85 °C
Q24FA20H00093	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	-20 to +70 °C
Q24FA20H00095	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	7 pF	-20 to +75 °C
Q24FA20H00097	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	20 pF	-20 to +75 °C
Q24FA20H00106	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	-20 to +75 °C
Q24FA20H00114	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	-40 to +85 °C
Q24FA20H00115	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	8 pF	-20 to +75 °C
Q24FA20H00116	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	-30 to +85 °C
Q24FA20H00118	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	18 pF	-20 to +70 °C
Q24FA20H00122	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	-40 to +85 °C
Q24FA20H00126	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	15 pF	-20 to +75 °C
Q24FA20H00128	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	8 pF	-20 to +75 °C
Q24FA20H00132	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	-20 to +75 °C
Q24FA20H00137	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	-20 to +80 °C
Q24FA20H00139	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	8 pF	-40 to +85 °C
Q24FA20H00147	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	10 pF	-40 to +85 °C
Q24FA20H00150	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	-20 to +85 °C
Q24FA20H00151	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	-20 to +75 °C
Q24FA20H00152	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00153	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	-30 to +85 °C
Q24FA20H00155	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	8 pF	-30 to +85 °C
Q24FA20H00156	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	-20 to +75 °C
Q24FA20H00166	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	-20 to +75 °C
Q24FA20H00169	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	-20 to +75 °C
Q24FA20H00172	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	20 pF	-40 to +85 °C
Q24FA20H00175	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00176	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00193	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	-40 to +85 °C
Q24FA20H00196	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	8 pF	-20 to +75 °C
Q24FA20H00201	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00202	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	14 pF	-20 to +75 °C
Q24FA20H00208	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	13 pF	-20 to +75 °C
Q24FA20H00209	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	-40 to +85 °C
Q24FA20H00214	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	-40 to +85 °C
Q24FA20H00223	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	12 pF	-40 to +85 °C
Q24FA20H00225	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	8 pF	-20 to +70 °C
Q24FA20H00228	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	10 pF	-30 to +85 °C
Q24FA20H00229	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	6 pF	-20 to +75 °C
Q24FA20H00232	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	-40 to +85 °C
Q24FA20H00233	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	-20 to +85 °C
Q24FA20H00238	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	-40 to +85 °C
Q24FA20H00241	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	-20 to +70 °C
Q24FA20H00242	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	-20 to +75 °C
Q24FA20H00247	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	16 pF	-40 to +85 °C
Q24FA20H00249	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	-20 to +70 °C
Q24FA20H00251	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00260	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	10 pF	-20 to +75 °C
Q24FA20H00266	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	-40 to +85 °C
Q24FA20H00270	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	-30 to +85 °C
Q24FA20H00271	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	-30 to +70 °C
Q24FA20H00272	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	-20 to +70 °C
Q24FA20H00276	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	10 pF	-20 to +75 °C
Q24FA20H00279	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	-20 to +70 °C
Q24FA20H00287	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	8 pF	-20 to +75 °C
Q24FA20H00289	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-40 to +85 °C
Q24FA20H00298	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	12 pF	-20 to +70 °C
Q24FA20H00308	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	-20 to +75 °C
Q24FA20H00315	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	-40 to +85 °C
Q24FA20H00321	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	10 pF	-20 to +75 °C
Q24FA20H00322	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	10 pF	-30 to +85 °C
Q24FA20H00325	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	18 pF	-20 to +70 °C
Q24FA20H00326	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	15 pF	-20 to +85 °C
Q24FA20H00331	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	-40 to +85 °C
Q24FA20H00332	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	-20 to +75 °C
Q24FA20H00338	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	-20 to +85 °C
Q24FA20H00339	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	18 pF	-40 to +85 °C
Q24FA20H00340	2.5 x 2 x 0.55mm	FA-20H	19.200000 MHz	18 pF	-20 to +75 °C
