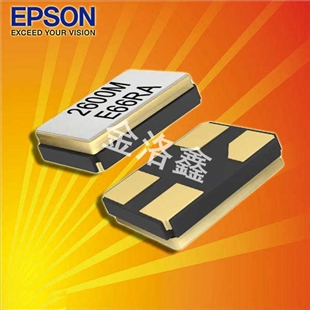

首頁進口晶振愛普生晶振Q22FA12800022,2016mm,10pf,-20~75°C,24MHz

Q22FA12800022,2016mm,10pf,-20~75°C,24MHz

規格型號：24387640
頻率：24MHz
尺寸：2.0 × 1.6 × 0.5 mm
PDF
產品描述：Q22FA12800022晶振,日本愛普生進口晶振,2016mm四腳貼片晶振,負載10pf,工作溫度-20~75°C,頻率24MHz,超小型晶振,石英貼片晶振,智能手機晶振,藍牙音響耳機晶振,MPU時鐘晶振,家電影音系統晶振.

Q22FA12800022,2016mm,10pf,-20~75°C,24MHz,Q22FA12800022晶振,日本愛普生進口晶振,2016mm四腳貼片晶振,負載10pf,工作溫度-20~75°C,頻率24MHz,超小型晶振,石英貼片晶振,智能手機晶振,藍牙音響耳機晶振,MPU時鐘晶振,家電影音系統晶振.

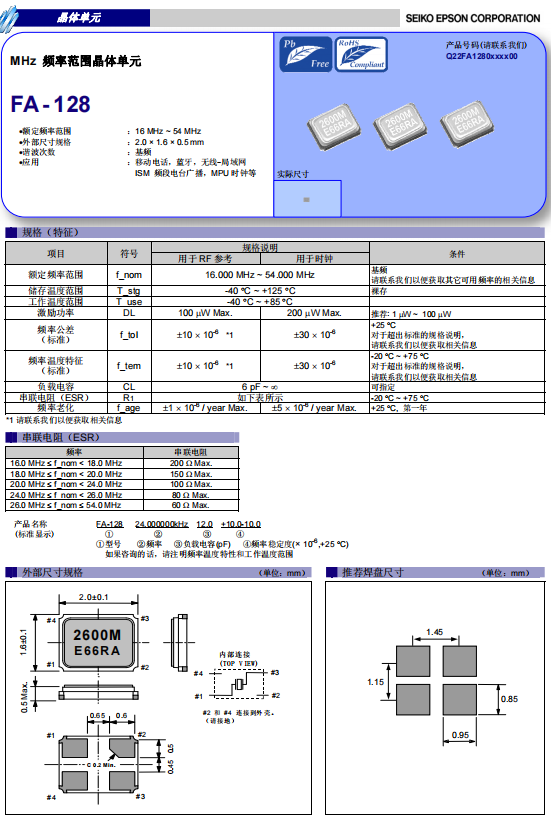

Q22FA12800022,2016mm,10pf,-20~75°C,24MHz,參數圖

項目	符號	規格說明	條件
額定頻率	f_nom	24MHz	請聯系我們以便獲取其它可用頻率的相關信息
儲存溫度	T_stg	-40℃~+125℃	裸存
工作溫度	T_use	-20℃~ +75℃
激勵功率	DL	100μW Max	推薦1μW ~100μW
頻率公差（標準）	f_tol	±10 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
頻率溫度特征（標準）	f_tem	±10 ppm	-20 °C ~ +75 °C 對于超出標準的規格說明，請聯系我們以便獲取相關信息
負載電容	CL	10pF	可指定
串聯電阻	R1	80Ω Max
頻率老化	f_age	±1 ppm	+25℃,第一年

Q22FA12800022,2016mm,10pf,-20~75°C,24MHz尺寸圖

編碼	尺寸	型號	頻率	負載	工作溫度
Q22FA12800002	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	12 pF	-20 to +70 °C
Q22FA12800007	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	-20 to +85 °C
Q22FA12800008	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	-20 to +70 °C
Q22FA12800010	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	10 pF	-20 to +75 °C
Q22FA12800011	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	10 pF	-20 to +75 °C
Q22FA12800013	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	-25 to +70 °C
Q22FA12800014	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	16 pF	-40 to +85 °C
Q22FA12800018	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	-20 to +75 °C
Q22FA12800020	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	-20 to +75 °C
Q22FA12800021	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	-20 to +75 °C
Q22FA12800022	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	-20 to +75 °C
Q22FA12800024	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	-20 to +75 °C
Q22FA12800025	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	-20 to +75 °C
Q22FA12800026	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	-20 to +75 °C
Q22FA12800030	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	-20 to +70 °C
Q22FA12800031	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	18 pF	-20 to +75 °C
Q22FA12800034	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	8 pF	-30 to +70 °C
Q22FA12800035	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	-20 to +75 °C
Q22FA12800037	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	-20 to +75 °C
Q22FA12800038	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	-20 to +75 °C
Q22FA12800043	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	-40 to +85 °C
Q22FA12800044	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	-40 to +85 °C
Q22FA12800045	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8.5 pF	-20 to +75 °C
Q22FA12800047	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	-20 to +85 °C
Q22FA12800053	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	-20 to +70 °C
Q22FA12800054	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	-20 to +70 °C
Q22FA12800061	2 x 1.6 x 0.5mm	FA-128	44.000000 MHz	12 pF	-20 to +75 °C
Q22FA12800062	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	-20 to +70 °C
Q22FA12800064	2 x 1.6 x 0.5mm	FA-128	37.400000 MHz	18 pF	-20 to +75 °C
Q22FA12800067	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	-20 to +75 °C
