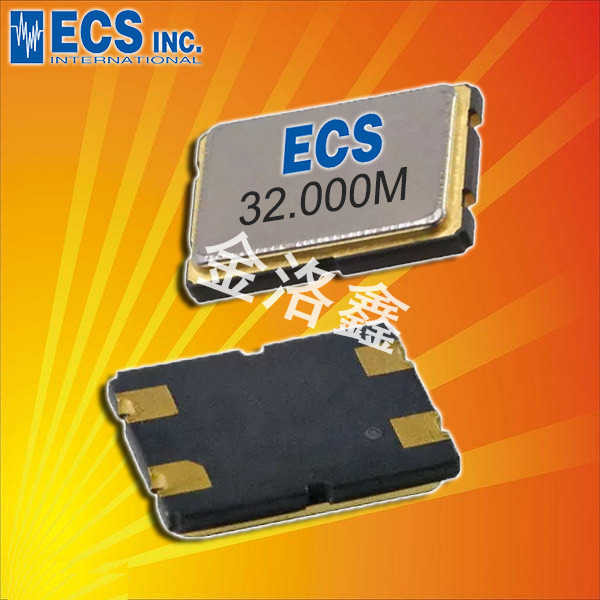

ECS-360-18-20BQ-DS|36.000MHz|18pf|-40~125°C,美國ECS晶振,ECS-360-18-20BQ-DS晶振,頻率36.000MHz,負載18pf,工作溫度-40~125°C,耐高溫晶振,CSM-8Q無源晶振,石英晶體諧振器,進口SMD晶振,汽車音響控制器晶振,汽車電子控制板晶振,汽車導航晶振,通信模塊晶振,智能交通燈控制器晶振.

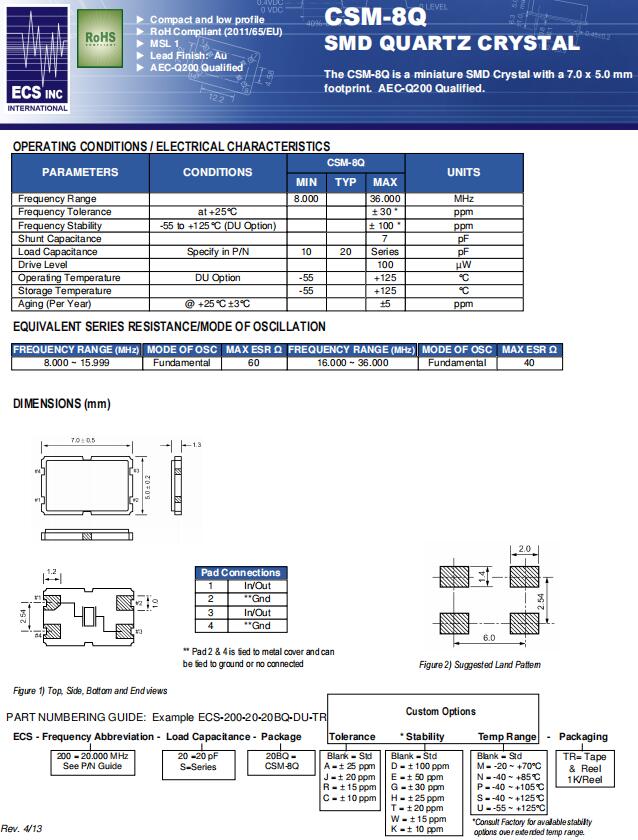

ECS-360-18-20BQ-DS|36.000MHz|18pf|-40~125°C,參數圖

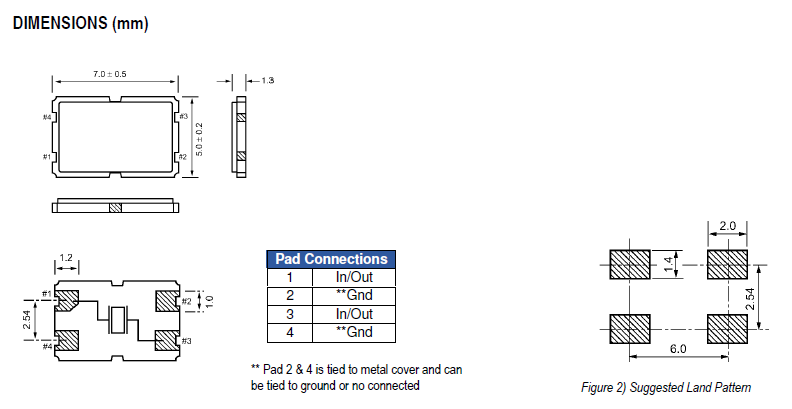

ECS-360-18-20BQ-DS|36.000MHz|18pf|-40~125°C 尺寸圖

ECS原廠編碼	型號	頻率	頻率穩定度	頻率偏差	負載電容	工作溫度
ECS-100-18-20BQ-DS	CSM-8Q	10MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-110.5-18-20BQ-DS	CSM-8Q	11.0592MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-120-18-20BQ-DS	CSM-8Q	12MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-130-18-20BQ-DS	CSM-8Q	13MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-140-18-20BQ-DS	CSM-8Q	14MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-150-18-20BQ-DS	CSM-8Q	15MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-160-18-20BQ-DS	CSM-8Q	16MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-170-18-20BQ-DS	CSM-8Q	17MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-180-18-20BQ-DS	CSM-8Q	18MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-190-18-20BQ-DS	CSM-8Q	19MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-200-18-20BQ-DS	CSM-8Q	20MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-210-18-20BQ-DS	CSM-8Q	21MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-220-18-20BQ-DS	CSM-8Q	22MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-230-18-20BQ-DS	CSM-8Q	23MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-240-18-20BQ-DS	CSM-8Q	24MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-250-18-20BQ-DS	CSM-8Q	25MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-80-18-20BQ-DS	CSM-8Q	8MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
ECS-360-18-20BQ-DS	CSM-8Q	36MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
