ECS-184-20-28AX-TR/18.432MHz/-10~70℃/20pf,美國伊西斯晶振,歐美進口晶振,型號CSM-4AX,ECS-184-20-28AX-TR晶振,頻率18.432MHz,工作溫度-10~70℃,負載20pf,SMD石英晶體,攝像頭晶振,儲存卡晶振,電子體重秤晶振,智能體溫計晶振.

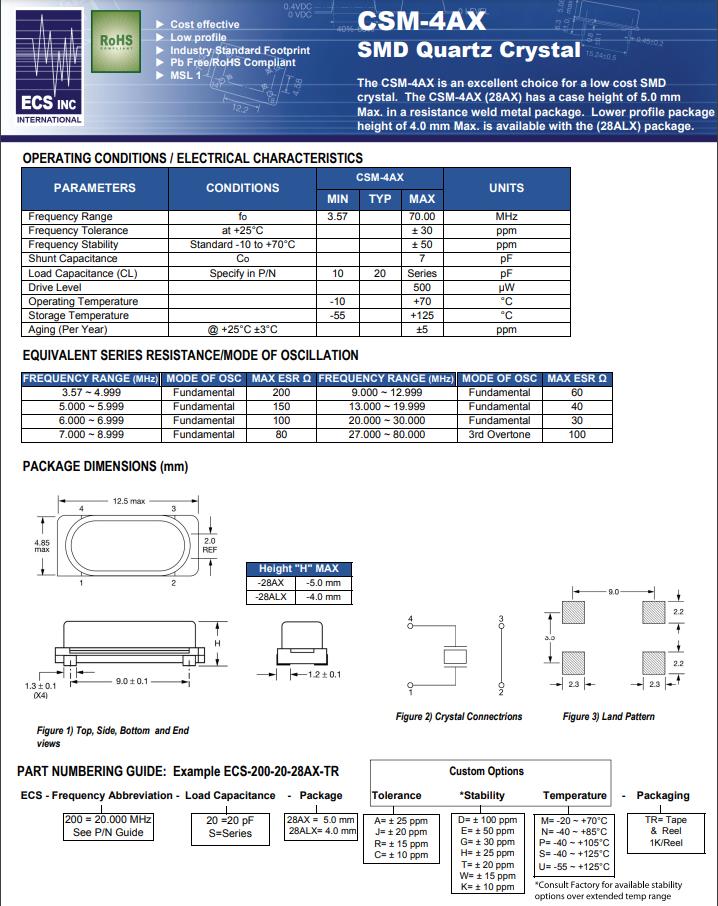

ECS-184-20-28AX-TR/18.432MHz/-10~70℃/20pf,參數圖

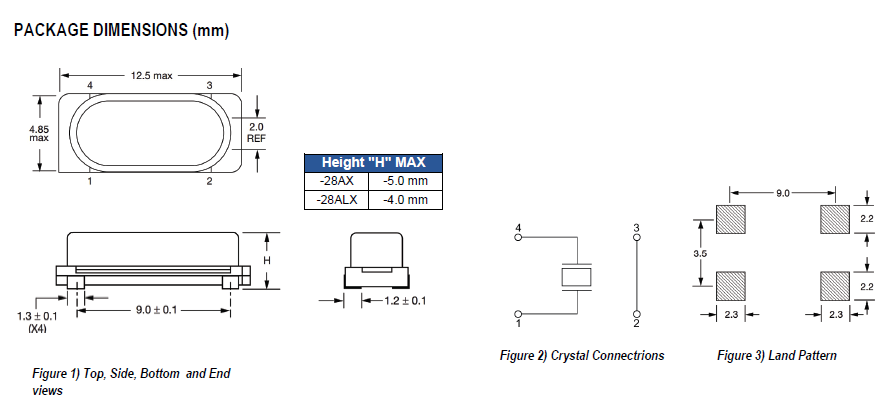

ECS-184-20-28AX-TR/18.432MHz/-10~70℃/20pf尺寸圖

ECS原廠編碼	型號	頻率	頻率穩定度	頻率偏差	負載電容
ECS-100-20-28AX-TR	CSM-4AX	10MHz	±50ppm	±30ppm	20pF
ECS-110.5-20-28AX-TR	CSM-4AX	11.0592MHz	±50ppm	±30ppm	20pF
ECS-120-18-28AX-TR	CSM-4AX	12MHz	±50ppm	±30ppm	18pF
ECS-120-32-28AX-TR	CSM-4AX	12MHz	±50ppm	±30ppm	32pF
ECS-120-S-28AX-TR	CSM-4AX	12MHz	±50ppm	±30ppm	Series
ECS-122.8-20-28AX-TR	CSM-4AX	12.288MHz	±50ppm	±30ppm	20pF
ECS-143-20-28AX-TR	CSM-4AX	14.31818MHz	±50ppm	±30ppm	20pF
ECS-147.4-20-28AX-TR	CSM-4AX	14.7456MHz	±50ppm	±30ppm	20pF
ECS-147.4-S-28AX-TR	CSM-4AX	14.7456MHz	±50ppm	±30ppm	Series
ECS-160-20-28AX-TR	CSM-4AX	16MHz	±50ppm	±30ppm	20pF
ECS-160-S-28AX-TR	CSM-4AX	16MHz	±50ppm	±30ppm	Series
ECS-184-20-28AX-TR	CSM-4AX	18.432MHz	±50ppm	±30ppm	20pF
ECS-200-20-28AX-TR	CSM-4AX	20MHz	±50ppm	±30ppm	20pF
ECS-240-12-28AX-TR	CSM-4AX	24MHz	±50ppm	±30ppm	12pF
ECS-240-20-28AX-TR	CSM-4AX	24MHz	±50ppm	±30ppm	20pF
ECS-250-18-28AX	CSM-4AX	25MHz	±50ppm	±30ppm	18pF
ECS-250-20-28AX-F-TR	CSM-4AX	25MHz	±50ppm	±30ppm	20pF
ECS-36-20-28AX-TR	CSM-4AX	3.6864MHz	±50ppm	±30ppm	20pF
ECS-40-20-28AX-TR	CSM-4AX	4MHz	±50ppm	±30ppm	20pF
ECS-60-32-28AX-TR	CSM-4AX	6MHz	±50ppm	±30ppm	32pF
ECS-73-20-28AX-TR	CSM-4AX	7.3728MHz	±50ppm	±30ppm	20pF
ECS-80-16-28AX-TR	CSM-4AX	8MHz	±50ppm	±30ppm	16pF
