- 規格型號：63460063
- 頻率：12.288MHz
- 尺寸：11.4×4.8mm
- 產品描述：ECS-122.8-18-5PXEN-TR晶振,美國ECS進口晶振,頻率12.288MHz,精度30ppm,工作溫度-40~85°C,SMD晶體諧振器,耐高溫晶振,無鉛環保晶振,錄音筆晶振,儲存卡晶振,無線路由器晶振,數字電表晶振.

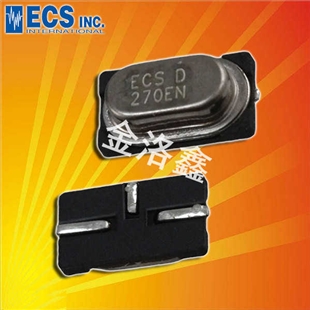

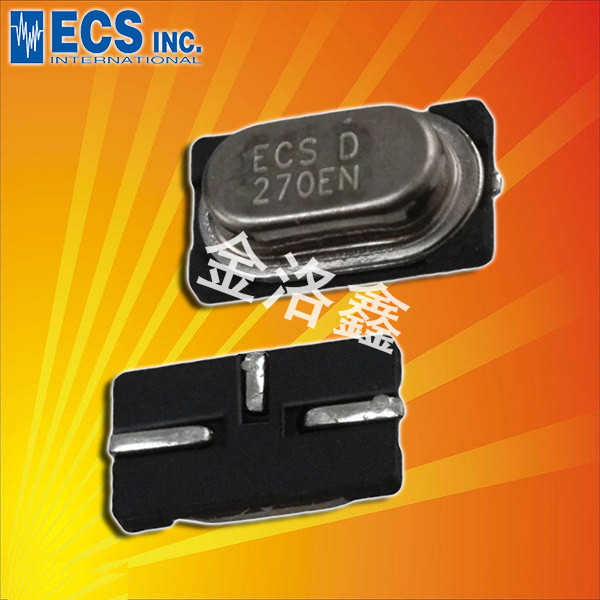

ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm
品說明.jpg)
ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm,ECS-122.8-18-5PXEN-TR晶振,美國ECS進口晶振,頻率12.288MHz,精度30ppm,工作溫度-40~85°C,SMD晶體諧振器,耐高溫晶振,無鉛環保晶振,錄音筆晶振,儲存卡晶振,無線路由器晶振,數字電表晶振.
品規格參數圖.jpg)

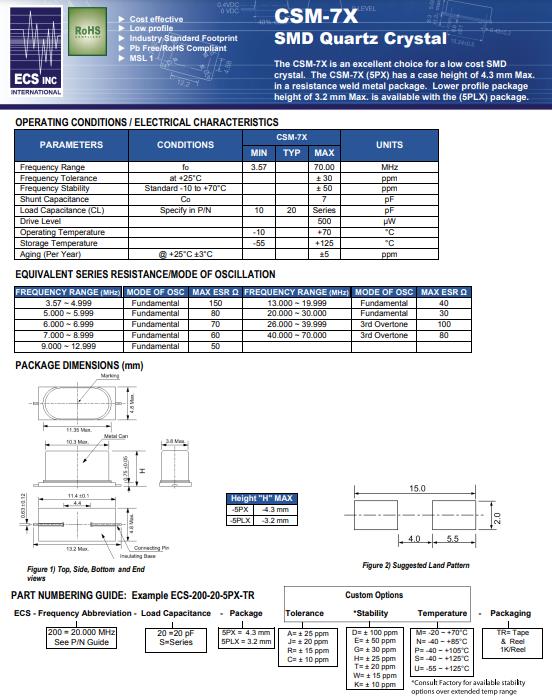

ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm,參數圖
| 參數 | 條件 | CSM-7X |
| 頻率 | 12.288MHz | |
| 頻率公差 | at +25°C | ± 30PPM |
| 頻率穩定性 | -40°C to +85°C | ± 50PPM |
| 負載電容 | Specify in P/N | 18pF |
| 激勵功率 | 500 μW Max | |
| 工作溫度 | -40°C to +85°C | |
| 保存溫度 | -55°C to +125°C | |
| 并聯電容 |
Co
|
7.0 pF |
| 老化 | @ +25°C ±3°C | ±5ppm |
品尺寸圖.jpg)

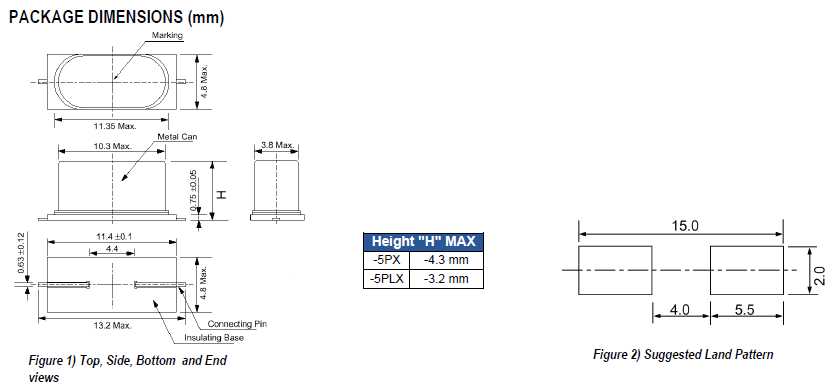

ECS-122.8-18-5PXEN-TR|美國ECS進口晶振|12.288MHz|30ppm尺寸圖
.png)
| ECS原廠編碼 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 |
| ECS-100-18-5PX-TR | CSM-7X | 10MHz | ±50ppm | ±30ppm | 18pF |
| ECS-100-S-5PX-TR | CSM-7X | 10MHz | ±50ppm | ±30ppm | Series |
| ECS-102.4-18-5PXEN | CSM-7X | 10.24MHz | ±50ppm | ±30ppm | 18pF |
| ECS-102.45-16-5PX-TR | CSM-7X | 10.245MHz | ±50ppm | ±30ppm | 16pF |
| ECS-110.5-18-5PXEN-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | 18pF |
| ECS-110.5-20-5PX-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | 20pF |
| ECS-110.5-32-5PX-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | 32pF |
| ECS-110.5-S-5PX-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | Series |
| ECS-110-18-5PXEN-TR | CSM-7X | 11MHz | ±50ppm | ±30ppm | 18pF |
| ECS-115.2-18-5PXEN | CSM-7X | 11.52MHz | ±50ppm | ±30ppm | 18pF |
| ECS-120.003-18-5PXEN | CSM-7X | 12.000393MHz | ±50ppm | ±30ppm | 18pF |
| ECS-120-18-5PX-TR | CSM-7X | 12MHz | ±50ppm | ±30ppm | 18pF |
| ECS-120-32-5PX-TR | CSM-7X | 12MHz | ±50ppm | ±30ppm | 32pF |
| ECS-120-S-5PX-TR | CSM-7X | 12MHz | ±50ppm | ±30ppm | Series |
| ECS-122.8-18-5PXEN-TR | CSM-7X | 12.288MHz | ±50ppm | ±30ppm | 18pF |
| ECS-122.8-20-5PX-TR | CSM-7X | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-122.8-S-5PX-TR | CSM-7X | 12.288MHz | ±50ppm | ±30ppm | Series |
| ECS-135.6-12-5PX-TR | CSM-7X | 13.56MHz | ±50ppm | ±30ppm | 12pF |
| ECS-135-18-5PXEN-TR | CSM-7X | 13.5168MHz | ±50ppm | ±30ppm | 18pF |
| ECS-143-18-5PXEN-TR | CSM-7X | 14.31818MHz | ±50ppm | ±30ppm | 18pF |
| ECS-143-20-5PX-TR | CSM-7X | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-S-5PX-TR | CSM-7X | 14.31818MHz | ±50ppm | ±30ppm | Series |
| ECS-147.4-18-5PXEN-TR | CSM-7X | 14.7456MHz | ±50ppm | ±30ppm | 18pF |
| ECS-147.4-20-5PX-TR | CSM-7X | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-S-5PX-TR | CSM-7X | 14.7456MHz | ±50ppm | ±30ppm | Series |
| ECS-150-18-5PXEN | CSM-7X | 15MHz | ±50ppm | ±30ppm | 18pF |
| ECS-150-S-5PX-TR | CSM-7X | 15MHz | ±50ppm | ±30ppm | Series |
| ECS-160.003-18-5PXEN-TR | CSM-7X | 16.000312MHz | ±50ppm | ±30ppm | 18pF |
| ECS-160.003-18-5PX-TR | CSM-7X | 16.000312MHz | ±50ppm | ±30ppm | 18pF |
| ECS-160-18-5PXEN-TR | CSM-7X | 16MHz | ±50ppm | ±30ppm | 18pF |
| ECS-160-20-5PX-TR | CSM-7X | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-S-5PX-TR | CSM-7X | 16MHz | ±50ppm | ±30ppm | Series |
| ECS-162.57-18-5PXEN-TR | CSM-7X | 16.257MHz | ±50ppm | ±30ppm | 18pF |
| ECS-163-18-5PXEN-TR | CSM-7X | 16.384MHz | ±50ppm | ±30ppm | 18pF |
| ECS-177.3-18-5PXEN | CSM-7X | 17.734475MHz | ±50ppm | ±30ppm | 18pF |
| ECS-180-18-5PXEN | CSM-7X | 18MHz | ±50ppm | ±30ppm | 18pF |
| ECS-180-S-5PX-TR | CSM-7X | 18MHz | ±50ppm | ±30ppm | Series |
| ECS-184-18-5PX-TR | CSM-7X | 18.432MHz | ±50ppm | ±30ppm | 18pF |
| ECS-184-20-5PX-TR | CSM-7X | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-184-S-5PX-TR | CSM-7X | 18.432MHz | ±50ppm | ±30ppm | Series |
| ECS-196.6-18-5PXEN-TR | CSM-7X | 19.6608MHz | ±50ppm | ±30ppm | 18pF |
| ECS-196.6-20-5PX-TR | CSM-7X | 19.6608MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-16-5PX-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | 16pF |
| ECS-200-18-5PXEN-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | 18pF |
| ECS-200-20-5PX-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-S-5PX-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | Series |
| ECS-204.8-20-5PX | CSM-7X | 20.48MHz | ±50ppm | ±30ppm | 20pF |
| ECS-221-18-5PXEN-TR | CSM-7X | 22.1184MHz | ±50ppm | ±30ppm | 18pF |
| ECS-240-12-5PX-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 12pF |
| ECS-240-16-5PX-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 16pF |
| ECS-240-18-5PXEN-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 18pF |
| ECS-240-20-5PX-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 20pF |
| ECS-245.7-18-5PXEN-TR | CSM-7X | 24.576MHz | ±50ppm | ±30ppm | 18pF |
| ECS-245.7-20-5PX-TR | CSM-7X | 24.576MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-18-5PX-F-TR | CSM-7X | 25MHz | ±50ppm | ±30ppm | 18pF |
| ECS-251.75-18-5PX-EN-TR | CSM-7X | 25.175MHz | ±50ppm | ±30ppm | 18pF |
| ECS-270-18-5PX-F-TR | CSM-7X | 27MHz | ±50ppm | ±30ppm | 18pF |
| ECS-286.3-18-5PX-F-EN-TR | CSM-7X | 28.63636MHz | ±50ppm | ±30ppm | 18pF |
| ECS-320-18-5PXEN | CSM-7X | 32MHz | ±50ppm | ±30ppm | 18pF |
