首頁歐美晶振MX575ABC70M0000|LVCMOS輸出晶振|光纖通道設備晶振|MX57貼片晶振

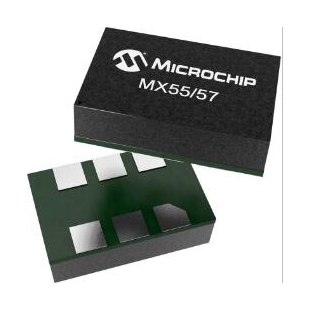

MX575ABC70M0000|LVCMOS輸出晶振|光纖通道設備晶振|MX57貼片晶振

規格型號：24472590
頻率：70MHz
尺寸：7.00mm x 5.00mm
PDF
產品描述：MX575ABC70M0000|LVCMOS輸出晶振|光纖通道設備晶振|MX57貼片晶振,以其特性成為多領域核心時鐘組件,尤其適配光纖通道設備,如光纖通道交換機,存儲區域網絡(SAN)控制器,為設備提供穩定時鐘,保障多設備間高速數據交互

MX575ABC70M0000|LVCMOS輸出晶振|光纖通道設備晶振|MX57貼片晶振
MX575ABC70M0000晶振遵循嚴格的品質管控體系,從原材料到成品全程把控,采用高純度石英晶體原料,經精密切割與校準工藝,確保頻率精度與長期穩定性.生產過程符合ISO9001質量標準,每顆晶振均通過高低溫循環,濕度測試,振動沖擊等可靠性驗證,平均無故障工作時間(MTBF)超200000小時.支持完整的質量追溯,提供詳細技術規格書與應用指南,同時可根據客戶需求定制溫度范圍,頻率偏差等參數,為光纖通道,數據中心等高端領域提供可靠時鐘解決方案.

MX575ABC70M0000|LVCMOS輸出晶振|光纖通道設備晶振|MX57貼片晶振

原廠型號 Originalmodel：	MX575ABC70M0000	品牌brand：	Microchip有源晶振
Manufacturer品牌	Microchip有源晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	MX57	Current-Supply(Max)	95mA
Type類型	XO (Standard)	PackageHeight高度	1.40mm
Frequency頻率	70MHz	Termination 腳位	6pad
輸出方式 Output：	LVCMOS射頻輸出	PackageType 封裝類型	6-SMD
Voltage-Supply電壓	2.375 V ~ 3.63 V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包裝數MPQ：	1000

MX575ABC70M0000|LVCMOS輸出晶振|光纖通道設備晶振|MX57貼片晶振

DSC1123CI2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1001CI2-027.0000	Microchip有源晶振	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CE1-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-150.0000	Microchip有源晶振	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103DI2-312.5000	Microchip有源晶振	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DI2-050.0000	Microchip有源晶振	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI5-300.0000	Microchip有源晶振	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL5-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123NL5-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
MX574BBD322M265	Microchip有源晶振	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
DSC1001CI2-018.4320	Microchip有源晶振	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CI1-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-300.0000	Microchip有源晶振	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1122CE1-125.0000	Microchip有源晶振	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123AE2-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI1-075.0000	Microchip有源晶振	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-150.0000	Microchip有源晶振	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC557-0344SI1	Microchip有源晶振	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC6003CI1A-033.0000	Microchip有源晶振	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V
DSC6111CI1A-008.0000	Microchip有源晶振	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V
DSC6011JI1A-024.0000	Microchip有源晶振	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-032K800	Microchip有源晶振	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-307K000	Microchip有源晶振	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-004.0000	Microchip有源晶振	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-032.0000	Microchip有源晶振	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-250K000	Microchip有源晶振	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-002K000	Microchip有源晶振	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V
DSC6101JI2A-024.0000	Microchip有源晶振	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CC1-047.3333	Microchip有源晶振	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1030BC1-008.0000	Microchip有源晶振	DSC1030	MEMS	8MHz	CMOS	3V
DSC1001BC1-024.0000	Microchip有源晶振	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BC1-026.6000	Microchip有源晶振	DSC1033	MEMS	26MHz	CMOS	3.3V
DSC1001DI1-001.8432	Microchip有源晶振	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-048.0000	Microchip有源晶振	DSC1033	MEMS	48MHz	CMOS	3.3V
DSC1033CI1-024.0000	Microchip有源晶振	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1033DI1-012.0000	Microchip有源晶振	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1033DI1-036.0000	Microchip有源晶振	DSC1033	MEMS	36MHz	CMOS	3.3V
DSC1001CI1-027.0000	Microchip有源晶振	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-050.0000	Microchip有源晶振	DSC1033	MEMS	50MHz	CMOS	3.3V
DSC6001CI1A-011.0592	Microchip有源晶振	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CI2-024.0000	Microchip有源晶振	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BE2-024.0000	Microchip有源晶振	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1001DI2-038.4000	Microchip有源晶振	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI5-033.3333	Microchip有源晶振	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1101DM2-012.0000	Microchip有源晶振	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DE5-018.4320	Microchip有源晶振	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1101AI2-040.0000	Microchip有源晶振	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip有源晶振	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip有源晶振	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip有源晶振	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
