- 規格型號：4118933
- 頻率：16 MHz
- 尺寸：2520mm
- 產品描述：FC2BSBBMM16.0-T3|FX252B晶振|2520四腳貼片晶振|網絡應用晶振,16.0MHz,-40℃~+85℃,滿足戶外通信基站,工業交換機等設備的全天候運行需求

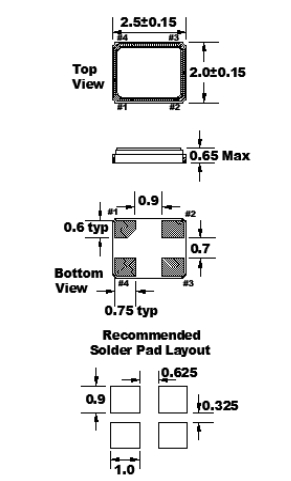

FC2BSBBMM16.0-T3|FX252B晶振|2520四腳貼片晶振|網絡應用晶振
.png)
.png)

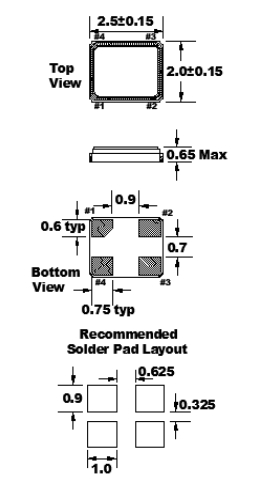

FC2BSBBMM16.0-T3|FX252B晶振|2520四腳貼片晶振|網絡應用晶振
作為典型的高頻晶振,FC2BSBBMM16.0-T3的核心頻率精準鎖定16.0MHz,該頻率是網絡通信,微控制器時鐘電路的關鍵基準頻率,廣泛適配以太網PHY芯片(如RTL8201F),WiFi模塊(如ESP8266)及ARM架構MCU(如STM32F4系列).其頻率性能表現優異,常溫(25℃)下頻率公差控制在±10ppm,全工作溫區(-40℃~+85℃)內頻率溫度穩定性低至±25ppm,可確保網絡數據傳輸時的時鐘同步精度,避免因頻率偏移導致的數據包丟失或傳輸延遲.電氣參數上,該晶振支持3.0V~3.6V供電電壓,典型工作電流僅8mA(啟動電流15mA/10ms),在PoE(以太網供電)設備中可降低整體功耗,負載電容提供12pF/20pF兩種規格,工程師可根據電路阻抗匹配需求靈活選擇,無需額外設計電容補償電路,輸出波形為正弦波/方波可選(方波占空比45%~55%),兼容TTL/CMOS電平標準,直接對接數字電路無需信號調理.
.png)
.png)
FC2BSBBMM16.0-T3|FX252B晶振|2520四腳貼片晶振|網絡應用晶振
| 原廠型號 Original model ： | FC2BSBBMM16.0-T3 | 品牌 brand ： | FOX晶振 |
| 品牌 brand ： | FOX進口晶振 | ESR（等效串聯電阻） Resistance) | 200 Ohms |
| 型號名稱 Model name： | FX252B | 溫度 Operating Temperature | -10°C ~ 60°C |
| Type 系列： | MHz Crystal | 腳位 Termination： | 4pad |
| 頻率 frequency ： | 16MHz | 封裝類型 Package Type： | 4-SMD |
| Frequency Stability頻率穩定度 | ±50ppm | 高度 Package Height： | 0.60mm |
| frequency tolerance頻率容差 | ±50ppm | 最小包裝數 MPQ ： | 3000 |
| Load capacitance 負載電容 | 20pF | 包裝 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 2520mm | 安裝方式 Mounting Style： | Surface Mount |
.png)
.png)

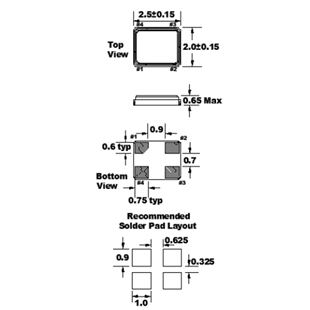

FC2BSBBMM16.0-T3|FX252B晶振|2520四腳貼片晶振|網絡應用晶振
.png)
FC2BSBBMM16.0-T3|FX252B晶振|2520四腳貼片晶振|網絡應用晶振
| FC4SDCBMF10.0-T1 | FOX | HC49SDLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF8.0-T1 | FOX | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF3.6864-T1 | FOX | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF |
| FKFSREIHM0.032768-T3 | FOX | FSRLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC4STCBMF20.0 | FOX | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF |
| FK135EIHM0.032768-T3 | FOX | K135 | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC5BQCCMC12.0-T1 | FOX | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMM25.0-T1 | FOX | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMM12.0-T1 | FOX | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC7BSCCMM8.0-T1 | FOX | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMM7.3728-T1 | FOX | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FKFSXEIHM0.032768-T3 | FOX | FSXLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FKFSREIBM0.032768-T3 | FOX | FSRLF | kHz Crystal | 32.768 kHz | - | ±20ppm | 6pF |
| FC8AQCCMC3.6864-T1 | FOX | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF |
| FC8AQCCMC4.0-T1 | FOX | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF |
| FC4SDCBMF11.0592-T1 | FOX | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF25.0-T1 | FOX | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF16.0-T1 | FOX | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF12.0-T1 | FOX | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF24.0-T1 | FOX | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM25.0-T1 | FOX | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF14.7456-T1 | FOX | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM8.0-T1 | FOX | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF7.3728-T1 | FOX | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF6.0-T1 | FOX | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF4.0-T1 | FOX | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC3BQBBME12.0-T3 | FOX | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF |
| FC3BQBBMM25.0-T3 | FOX | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF |
| FKT38EIHD0.032768 | FOX | NC38LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC4STCBMF10.0 | FOX | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF25.0 | FOX | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF16.0 | FOX | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF12.0 | FOX | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF11.0592 | FOX | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF8.0 | FOX | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF7.3728 | FOX | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBLF3.579545 | FOX | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF |
| FC4STCBMF4.0 | FOX | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF3.6864 | FOX | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF |
| FKT26EIHD0.032768 | FOX | NC26LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FKT38EIHQ0.032768 | FOX | NC38LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC5BQCCMC25.0-T1 | FOX | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC24.0-T1 | FOX | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC20.0-T1 | FOX | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF |
| FC5BQCCMC16.0-T1 | FOX | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMC8.0-T1 | FOX | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMM6.0-T1 | FOX | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FC7BSCCMC7.3728-T1 | FOX | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FC8AQCCMC6.0-T1 | FOX | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FC4SDCBMF12.288-T1 | FOX | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMM16.0-T1 | FOX | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBMF18.432-T1 | FOX | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF |
| FC4SDCBLF3.579545-T1 | FOX | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF |
| FC4SDCBMM4.0-T1 | FOX | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF |
| FC2BSBBMM16.0-T3 | FOX | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF |
| FC4STCBMF18.432 | FOX | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF |
| FC4STCBMF14.7456 | FOX | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF |
| FKT26EIHQ0.032768 | FOX | NC26LF | kHz Crystal | 32.768 kHz | - | ±20ppm | 12.5pF |
| FC3BACALI16.0-T3 | FOX | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF |
| FC3BACBDI16.0-T3 | FOX | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF |
