首頁歐美晶振DSC1121BI2-080.0000|5032石英振蕩器|美國微芯科技晶振|DSC1121有源晶振

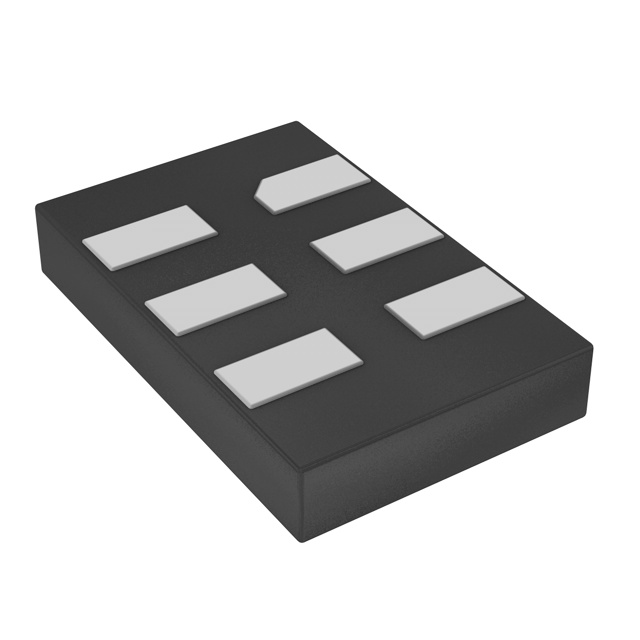

DSC1121BI2-080.0000|5032石英振蕩器|美國微芯科技晶振|DSC1121有源晶振

規格型號：77384647
頻率：80MHz
尺寸：5.00mm x 3.20mm
PDF
產品描述：DSC1121BI2-080.0000|5032石英振蕩器|美國微芯科技晶振|DSC1121有源晶振,網絡通信領域,為交換機,路由器提供穩定時鐘,保障數據幀同步傳輸.在工業自動化領域,適配PLC,伺服驅動器,提升控制指令響應精度

DSC1121BI2-080.0000|5032石英振蕩器|美國微芯科技晶振|DSC1121有源晶振
DSC1121BI2-080.0000|5032有源晶振在技術設計上凸顯專業性,采用串聯諧振式電路結構,相比并聯型晶振具備更低的頻率漂移.輸出接口支持LVCMOS/LVTTL標準電平,可直接與主流MCU,FPGA芯片兼容,無需額外電平轉換電路.內置過壓保護與溫度補償電路,在-40℃~+85℃溫區內頻率偏差控制在±25ppm以內,適配惡劣工況.此外,其工作電流低至10mA(典型值),在低功耗設備中可有效降低能源消耗,兼顧性能與能效需求.每顆晶振均經過高低溫循環,振動沖擊等可靠性測試.同時提供完整的原廠技術文檔與質量追溯服務,支持客戶按需定制引腳配置,溫度范圍等參數,為工業,汽車級電子晶振,通信等高端領域客戶提供兼具性能與可靠性的時鐘解決方案.

DSC1121BI2-080.0000|5032石英振蕩器|美國微芯科技晶振|DSC1121有源晶振

原廠型號 Originalmodel：	DSC1121BI2-080.0000	品牌brand：	Microchip晶振
Manufacturer品牌	Microchip有源晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	DSC1121	Current-Supply(Max)	35mA
Type類型	MEMS	PackageHeight高度	0.90mm
Frequency頻率	80MHz智能手機晶振	Termination 腳位	6pad
輸出方式 Output：	CMOS	PackageType 封裝類型	6-SMD
Voltage-Supply電壓	2.25 V ~ 3.6 V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±25ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	5.00mm x 3.20mm	最小包裝數MPQ：	1000

DSC1121BI2-080.0000|5032石英振蕩器|美國微芯科技晶振|DSC1121有源晶振

DSC1123CI2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1001CI2-027.0000	Microchip有源晶振	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CE1-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-150.0000	Microchip有源晶振	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103DI2-312.5000	Microchip有源晶振	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DI2-050.0000	Microchip有源晶振	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI5-300.0000	Microchip有源晶振	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL5-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123NL5-100.0000	Microchip有源晶振	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
MX574BBD322M265	Microchip有源晶振	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
DSC1001CI2-018.4320	Microchip有源晶振	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CI1-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-156.2500	Microchip有源晶振	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-300.0000	Microchip有源晶振	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-125.0000	Microchip有源晶振	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1122CE1-125.0000	Microchip有源晶振	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123AE2-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI1-075.0000	Microchip有源晶振	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-150.0000	Microchip有源晶振	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-200.0000	Microchip有源晶振	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC557-0344SI1	Microchip有源晶振	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC6003CI1A-033.0000	Microchip有源晶振	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V
DSC6111CI1A-008.0000	Microchip有源晶振	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V
DSC6011JI1A-024.0000	Microchip有源晶振	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-032K800	Microchip有源晶振	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-307K000	Microchip有源晶振	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-004.0000	Microchip有源晶振	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-032.0000	Microchip有源晶振	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-250K000	Microchip有源晶振	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-002K000	Microchip有源晶振	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V
DSC6101JI2A-024.0000	Microchip有源晶振	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CC1-047.3333	Microchip有源晶振	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1030BC1-008.0000	Microchip有源晶振	DSC1030	MEMS	8MHz	CMOS	3V
DSC1001BC1-024.0000	Microchip有源晶振	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BC1-026.6000	Microchip有源晶振	DSC1033	MEMS	26MHz	CMOS	3.3V
DSC1001DI1-001.8432	Microchip有源晶振	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-048.0000	Microchip有源晶振	DSC1033	MEMS	48MHz	CMOS	3.3V
DSC1033CI1-024.0000	Microchip有源晶振	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1033DI1-012.0000	Microchip有源晶振	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1033DI1-036.0000	Microchip有源晶振	DSC1033	MEMS	36MHz	CMOS	3.3V
DSC1001CI1-027.0000	Microchip有源晶振	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-050.0000	Microchip有源晶振	DSC1033	MEMS	50MHz	CMOS	3.3V
DSC6001CI1A-011.0592	Microchip有源晶振	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CI2-024.0000	Microchip有源晶振	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BE2-024.0000	Microchip有源晶振	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1001DI2-038.4000	Microchip有源晶振	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI5-033.3333	Microchip有源晶振	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1101DM2-012.0000	Microchip有源晶振	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DE5-018.4320	Microchip有源晶振	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1101AI2-040.0000	Microchip有源晶振	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip有源晶振	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip有源晶振	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip有源晶振	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
